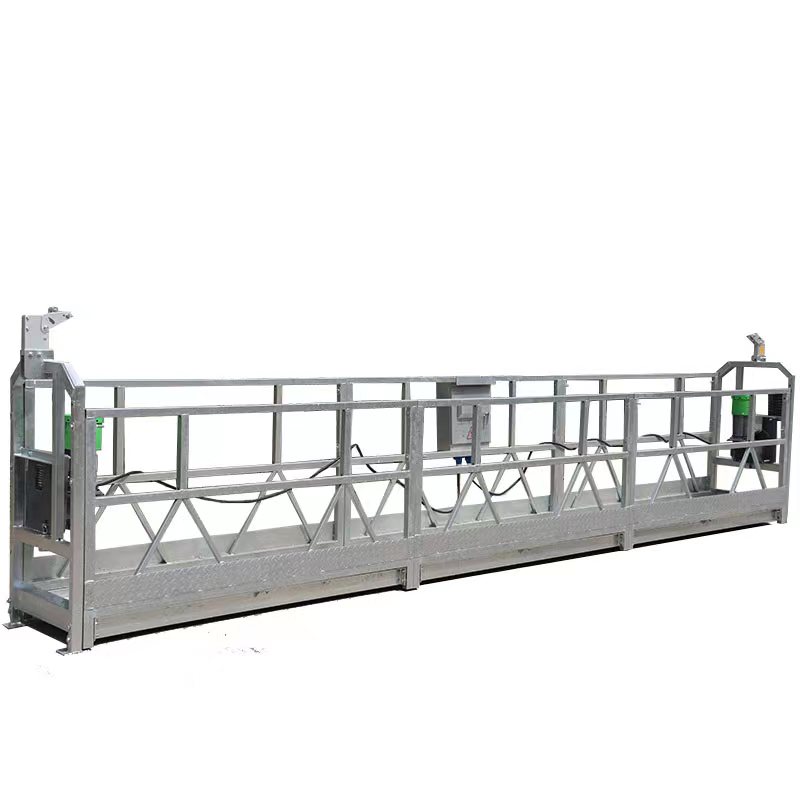

Building Construction Aluminum Suspended Platform

Building Construction Aluminum Suspended Platform are suspended along the external walls of buildings by wire ropes through a suspension mechanism suspended from the top of the roof of the building, with motors assembled on both sides of the basket to drive the load in the basket up and down.

1、Our products have many different specifications and support customisation , all pictures, prices and properties are for your reference only, subject to your customisation requirements, please consult our customer service before placing an order.

2、Before ordering, please confirm your required specification and size with customer service or call the contact number for advice in order to avoid the trouble caused by choosing the wrong one for you.

3、About the colour difference, our goods are physical shooting, due to the light, shooting angle and different monitors and other issues will appear a certain colour difference, please friends understand!

4、About after-sales, we are equipped with special logistics partners, if you have any questions welcome to consult our customer service staff!

5、About product demand, we can provide professional customer service staff and engineers for your professional questions and answers, if you have any questions or needs, please contact our customer service staff!

Contact Now E-Mail Telephone WhatsApp

Product Details

Product description

Building Construction Aluminum Suspended Platform is suitable for temporary applications and lifts personnel and their work equipment at infinite heights. It lifts people and materials to the ideal working height to get the job done correctly and efficiently.

1. time and cost saving alternative to tubular scaffolding

2. Unlimited working height

3. Quick and easy to assemble and install

4. Lightweight and easy to transport

Technical Parameters

appearance	painting/hot galvanized
fabrication material	steel/aluminum alloy
rated load	150kg	500kg	630kg	800kg	1000kg
lifting speed	9-11m/min	9-11m/min	9-11m/min	8-10m/min	8-10m/min
motor power	1.5kw	2x1.5kw	2x1.5kw	2x1.8kw	2x2.2kw
brake torque	16kN	2x16kN	2x16kN	2x16kN	2x16kN
steel rope angle adjusting range	3°-8°	3°-8°	3°-8°	3°-8°	3°-8°
distance between two steel rope	≤100mm	≤100mm	≤100m	≤100m	≤100m
counter weight(optional)	25kgx20pcs	25kgx30pcs	25kgx36pcs	25kgx40pcs	25kgx44pcs
diameter of steel rope	8.3mm	8.3mm	8.3mm	9.1mm	10.2mm
max lifting height(m)	300m	300m	300m	300m	300m
motor rotation speed	1420r/min	1420r/min	1420r/min	1420r/min	1420r/min
voltage(3phases)(optional)	220v/380v/415v/440v 50hz/60hz to be OEM

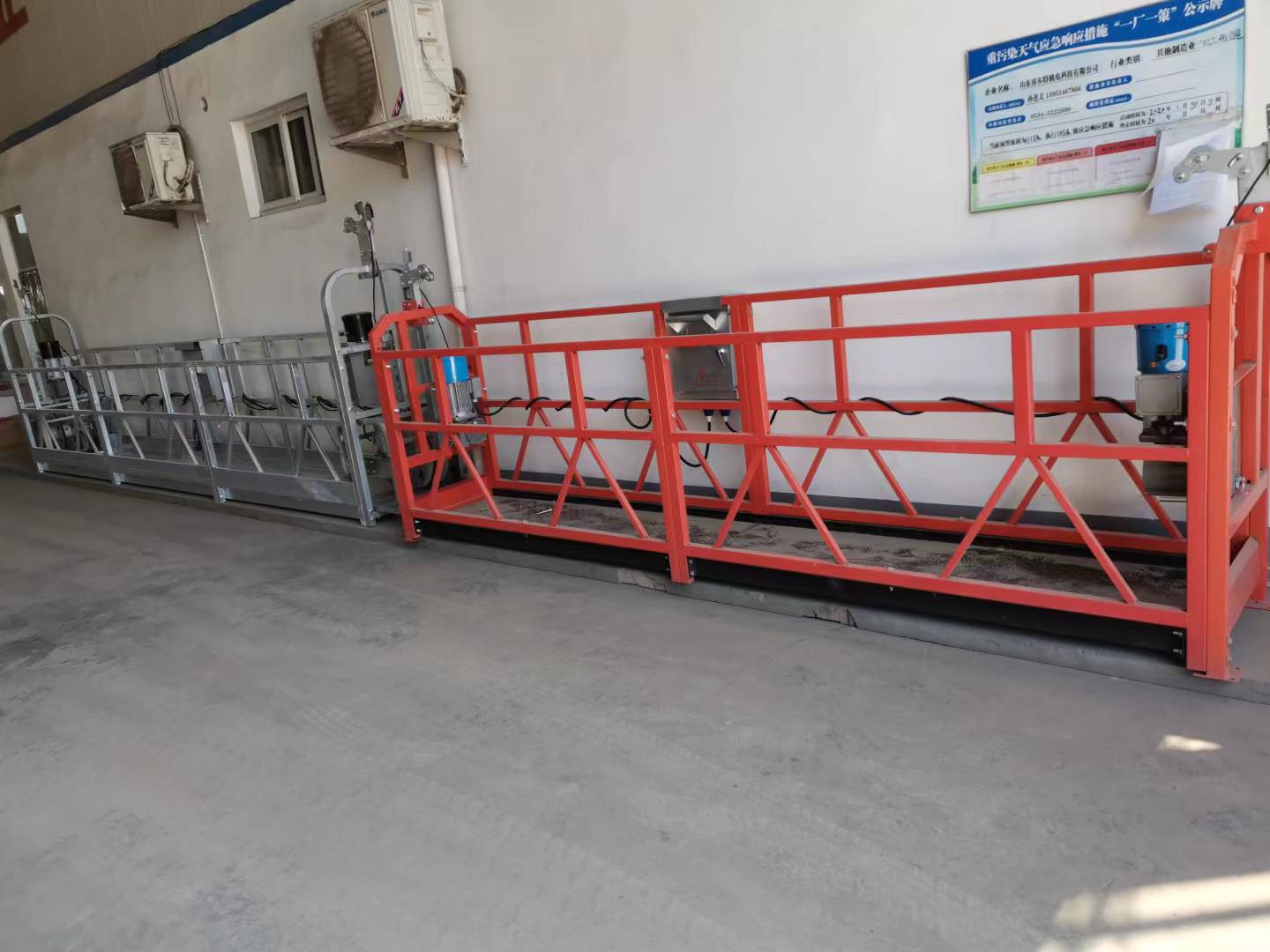

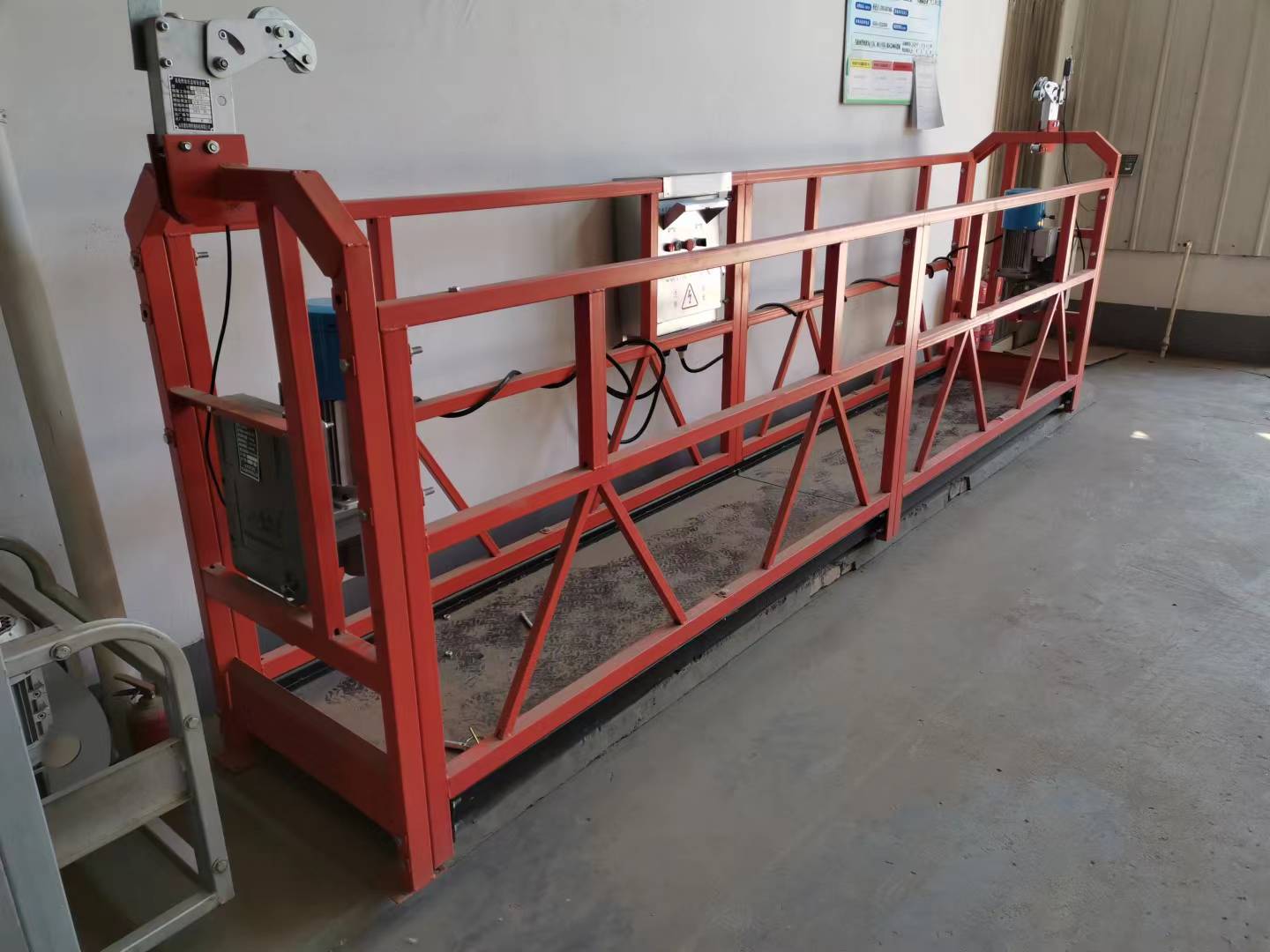

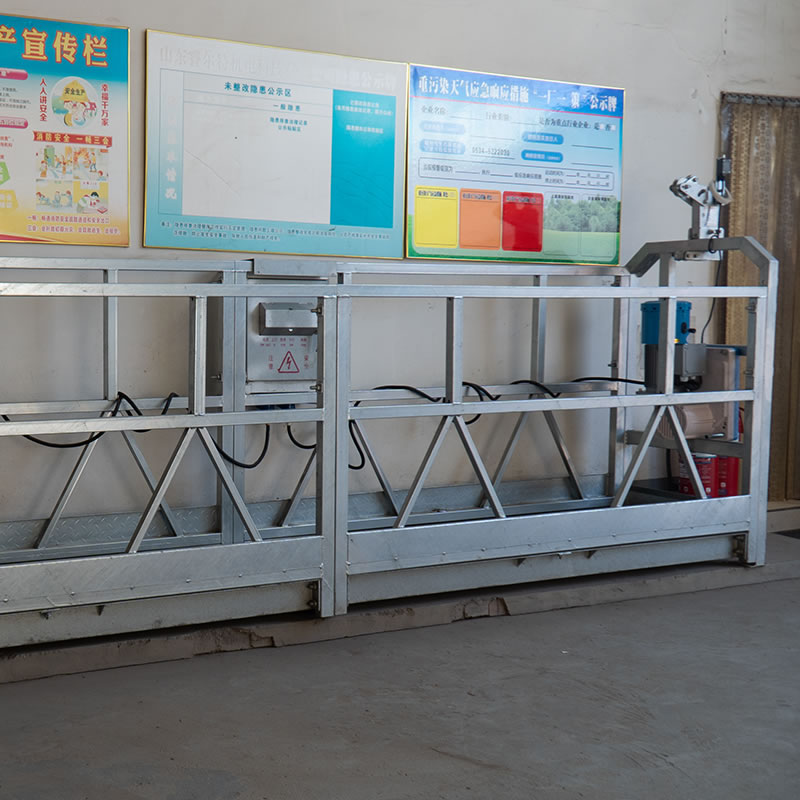

Product Pictures

Building Construction Aluminum Suspended Platform

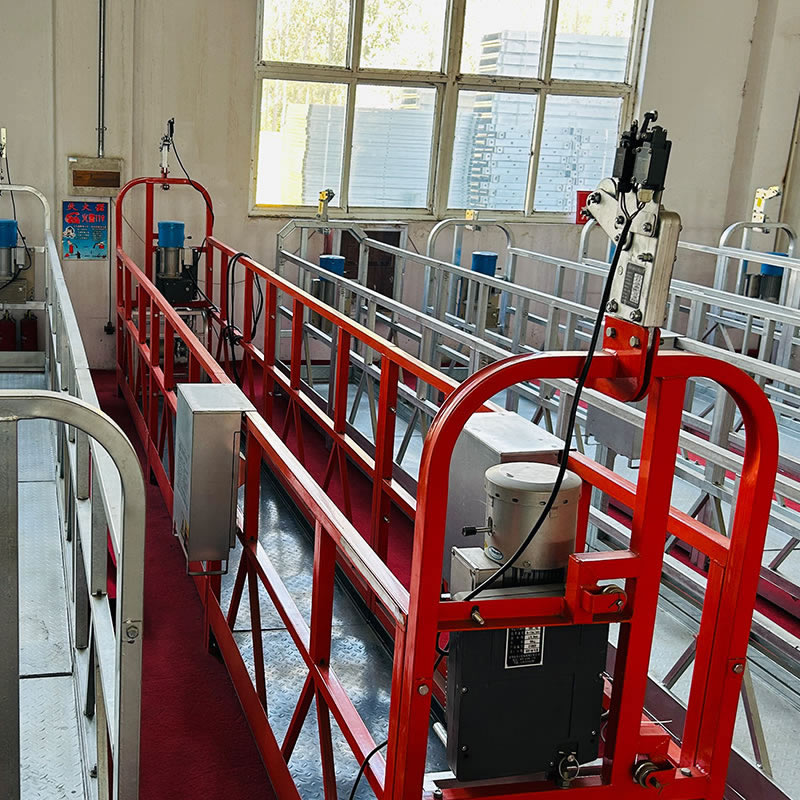

Product Inspection

Stirrup Suspended Platform operation in the installation inspection is mainly reflected in the following ten aspects:

Stirrup gondola main force components (suspension platform, suspension hanging machine) whether deformation, welds have cracks;

Whether the fasteners are missing or loose at the connection of the components;

Stirrups basket hanging mechanism is installed reliably and securely, whether the counterweight meets the requirements;

Whether the wire rope is serious corrosion, whether loose strands, kinks or serious broken wire, wire rope clamping is accurate and reliable;

The electrical control system action is flexible, unlocking and locking function is normal;

The safety lock action is flexible, lock and lock function is normal;

Ascending and descending (including manual descending and sliding) operation is normal, electromagnetic brake clearance is in line with the requirements;

The operation of the counting action is normal, whether the operation of the phenomenon of obstruction, whether the abnormal noise, motor fever or smoke, burnt flavor;

Speed reducer and transmission device whether according to the requirements of filling or replacement of lubricating oil;

Stirrup cradle whether according to the requirements of the proper limit block and wire rope weight hammer.

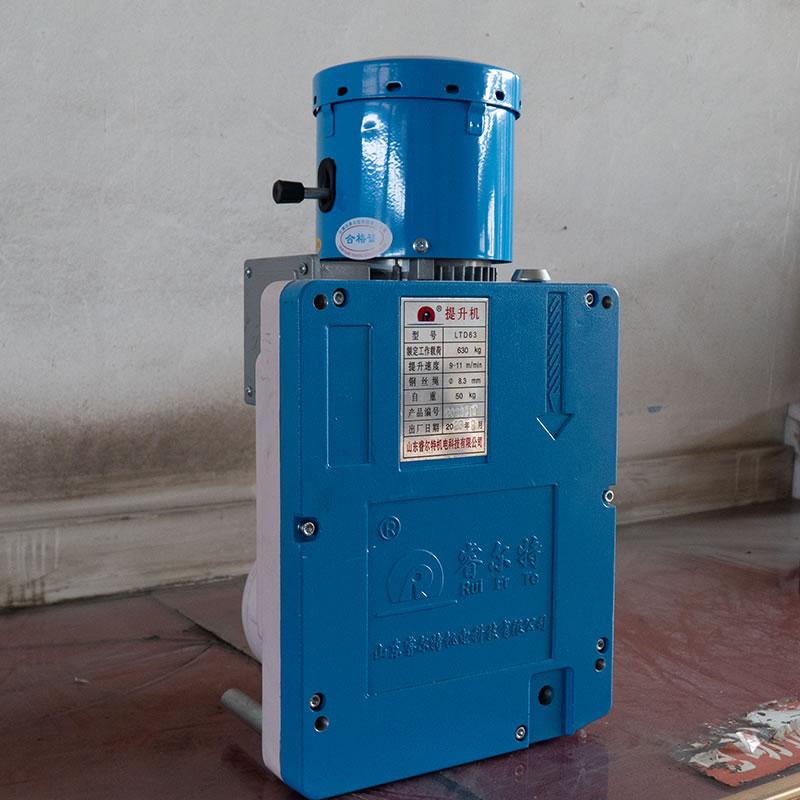

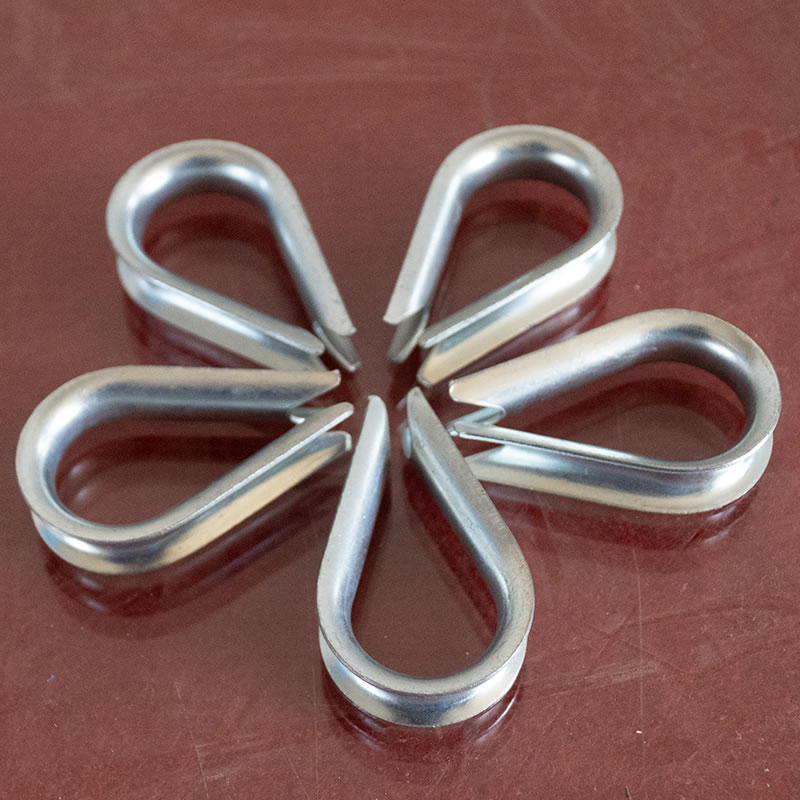

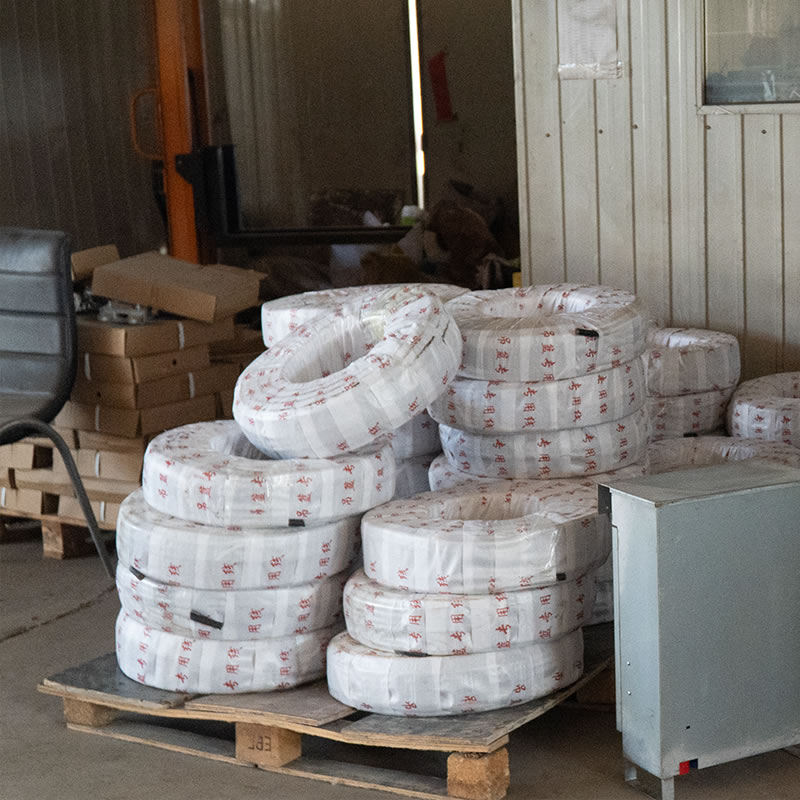

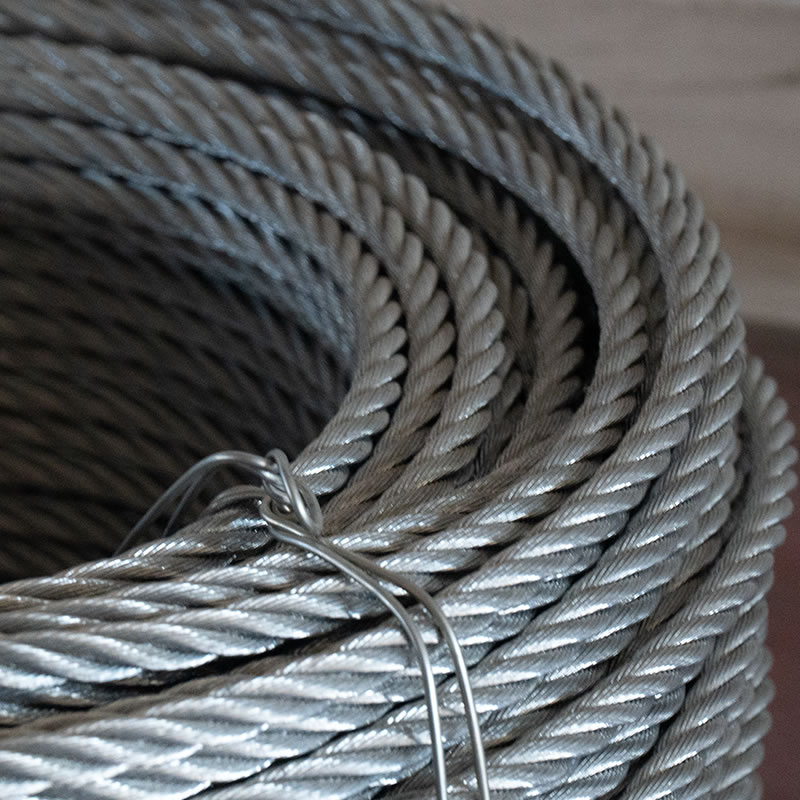

Product Accessories

Product Accessories

Building Construction Aluminum Suspended Platform

About Company

Based on the industry , create exclusive products

Shandong Ruierte Electromechanical Technology Co., Ltd. is a private sole proprietorship enterprise. It is located in Dezhou City, which is at the junction of Shandong Province and Hebei Province. It covers an area of 30 acres and has more than 50 employees. The annual sales volume exceeds 20,000 units.

Stirrup Suspended Platform

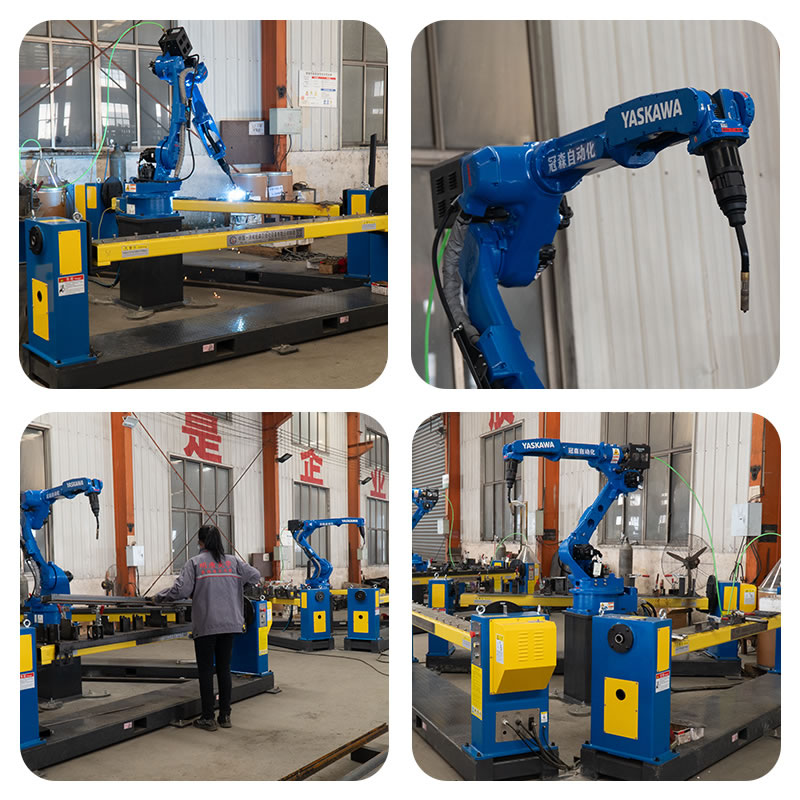

Factory environment

Stirrup Suspended Platform

Qualification Honors

Sales Countries

Payment and Transportation

FAQ

Q1. Payment term?
A:T/T or L/C at sight.

Q2. Are you a factory or trading company?
A:We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.

Q3. What quality certificate you own for your products?
A:Our products own EAC, CE and ISO9001 certificate.

Q4. How about the price?
A:Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
