Stirrup Suspended Platform

A Stirrup Suspended Platform , also known as a stirrup swing stage or stirrup gondola, is a type of suspended access equipment used in construction, maintenance, and repair work on buildings or structures. It provides a safe and efficient elevated working platform for workers to access high-rise or hard-to-reach areas.

1、Our products have many different specifications and support customisation , all pictures, prices and properties are for your reference only, subject to your customisation requirements, please consult our customer service before placing an order.

2、Before ordering, please confirm your required specification and size with customer service or call the contact number for advice in order to avoid the trouble caused by choosing the wrong one for you.

3、About the colour difference, our goods are physical shooting, due to the light, shooting angle and different monitors and other issues will appear a certain colour difference, please friends understand!

4、About after-sales, we are equipped with special logistics partners, if you have any questions welcome to consult our customer service staff!

5、About product demand, we can provide professional customer service staff and engineers for your professional questions and answers, if you have any questions or needs, please contact our customer service staff!

Contact Now E-Mail Telephone WhatsApp

Product Details

Product description

Stirrup Suspended Platform is a kind of construction cradle with novel design. Operators rely on the leg stirrups and stirrups bicycle like operation stirrup cradle rise, landing, not stirrups on the automatic suspension, can be lifted and lowered at will to control the speed, in the process of lifting and lowering can adhere to the smooth state, the wire rope set up how long Stirrup Suspended Platform can be as high as the Stirrup Suspended Platform's body construction Stirrup Suspended Platform body structure is simple, reasonable, internal design science, using traction transmission and negative service control technology, so as to achieve the effect of negative force locking, Stirrup Suspended Platform set up on the three different ways of safety braking A:mechanism, to effectively ensure that its lifting in the safety performance.

Technical Parameters

appearance	painting/hot galvanized
fabrication material	steel/aluminum alloy
rated load	150kg	500kg	630kg	800kg	1000kg
lifting speed	9-11m/min	9-11m/min	9-11m/min	8-10m/min	8-10m/min
motor power	1.5kw	2x1.5kw	2x1.5kw	2x1.8kw	2x2.2kw
brake torque	16kN	2x16kN	2x16kN	2x16kN	2x16kN
steel rope angle adjusting range	3°-8°	3°-8°	3°-8°	3°-8°	3°-8°
distance between two steel rope	≤100mm	≤100mm	≤100m	≤100m	≤100m
counter weight(optional)	25kgx20pcs	25kgx30pcs	25kgx36pcs	25kgx40pcs	25kgx44pcs
diameter of steel rope	8.3mm	8.3mm	8.3mm	9.1mm	10.2mm
max lifting height(m)	300m	300m	300m	300m	300m
motor rotation speed	1420r/min	1420r/min	1420r/min	1420r/min	1420r/min
voltage(3phases)(optional)	220v/380v/415v/440v 50hz/60hz to be OEM

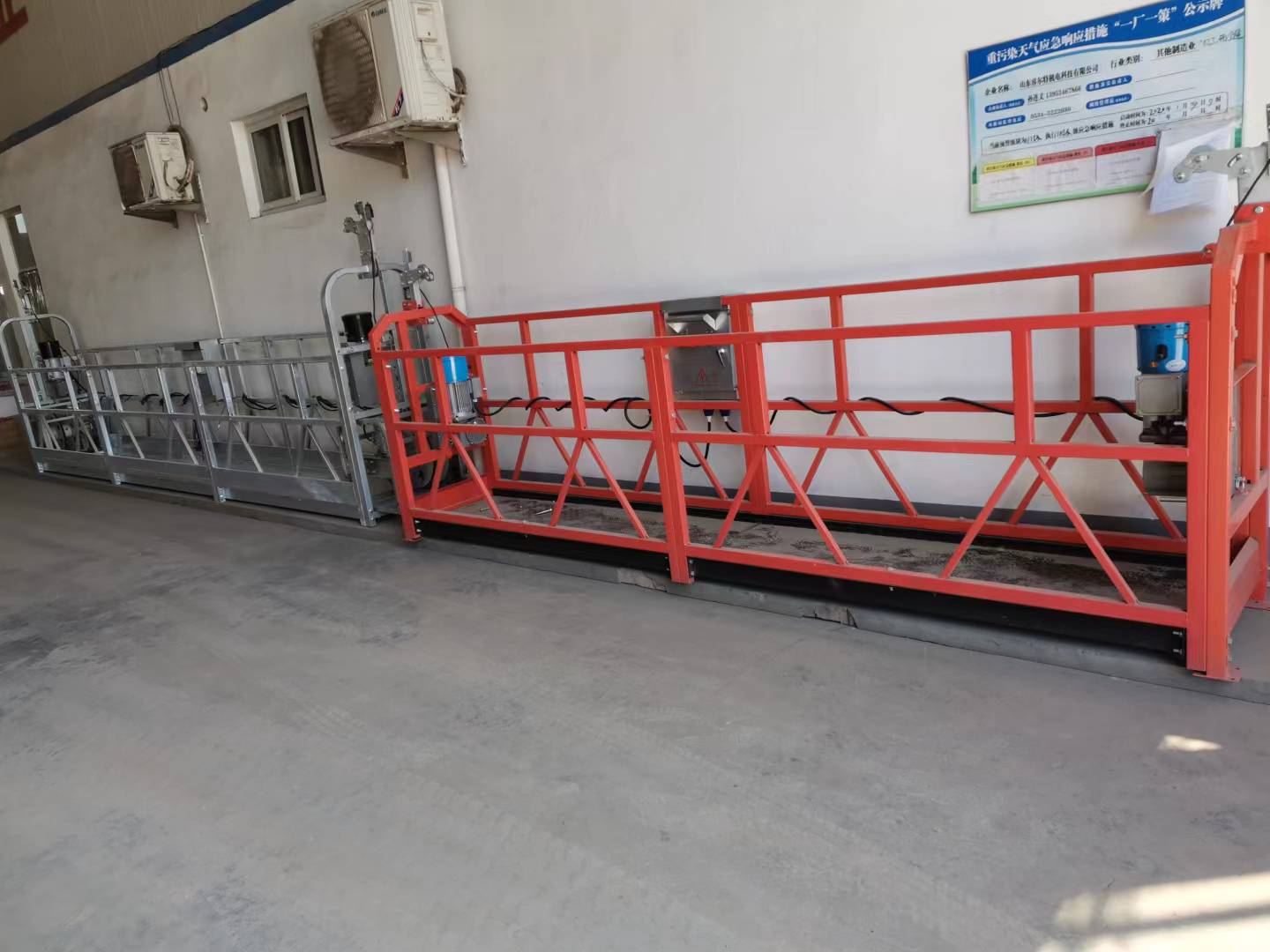

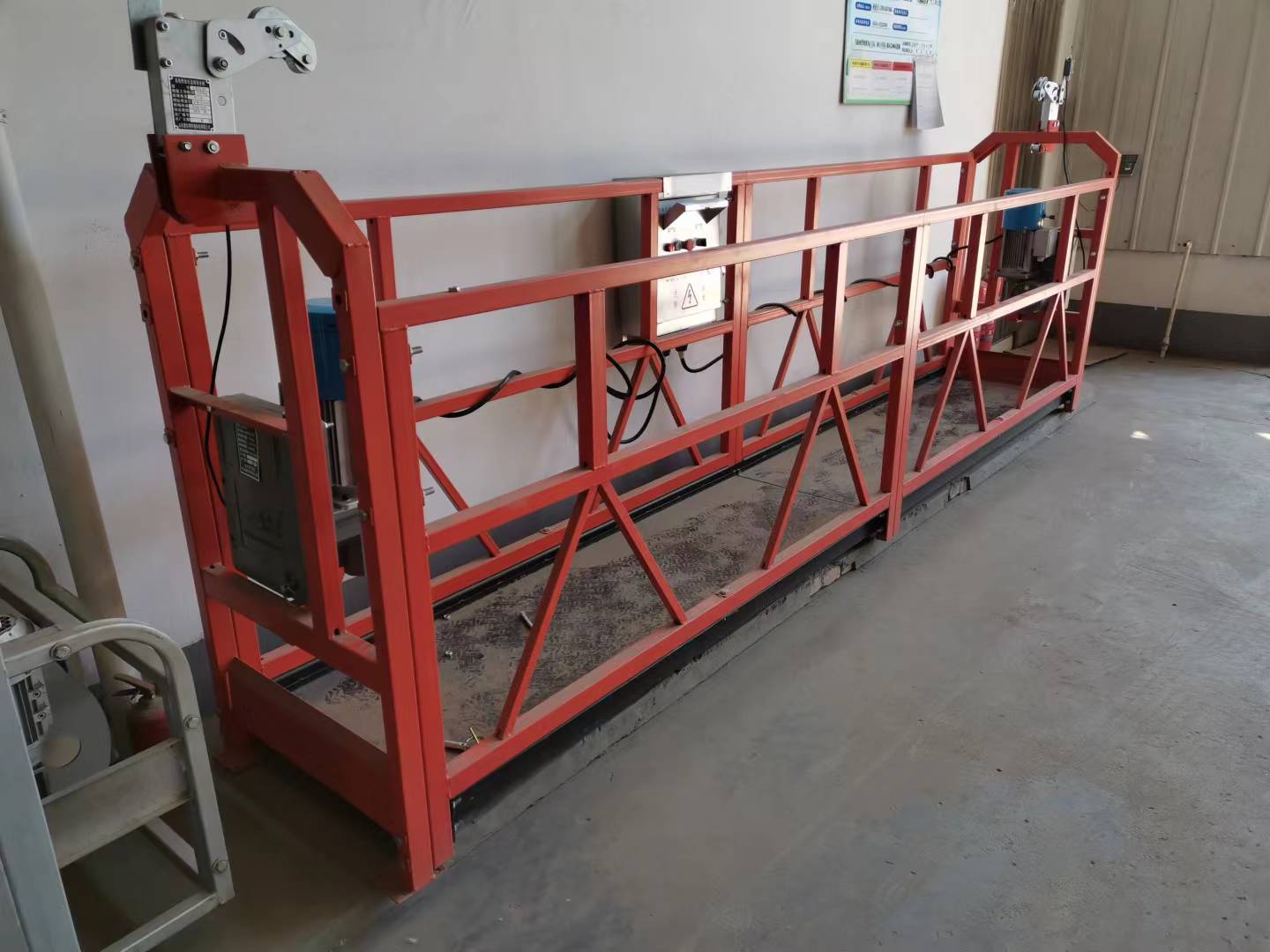

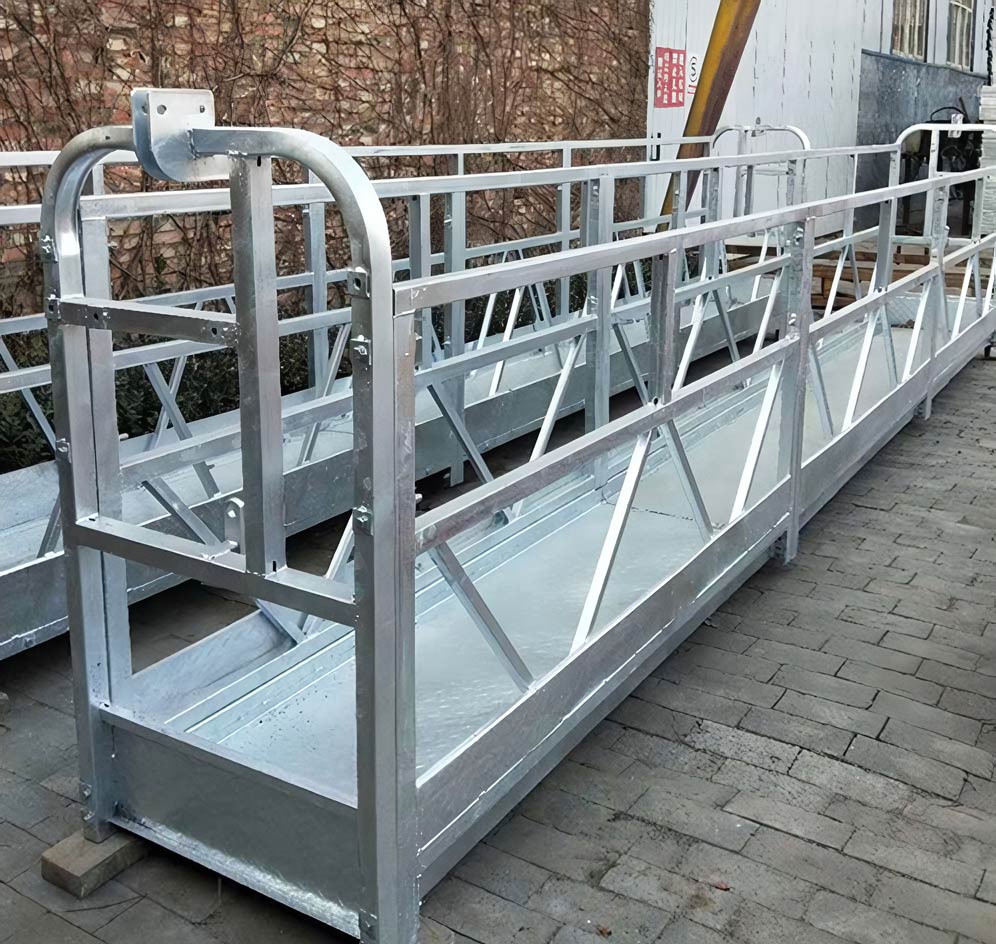

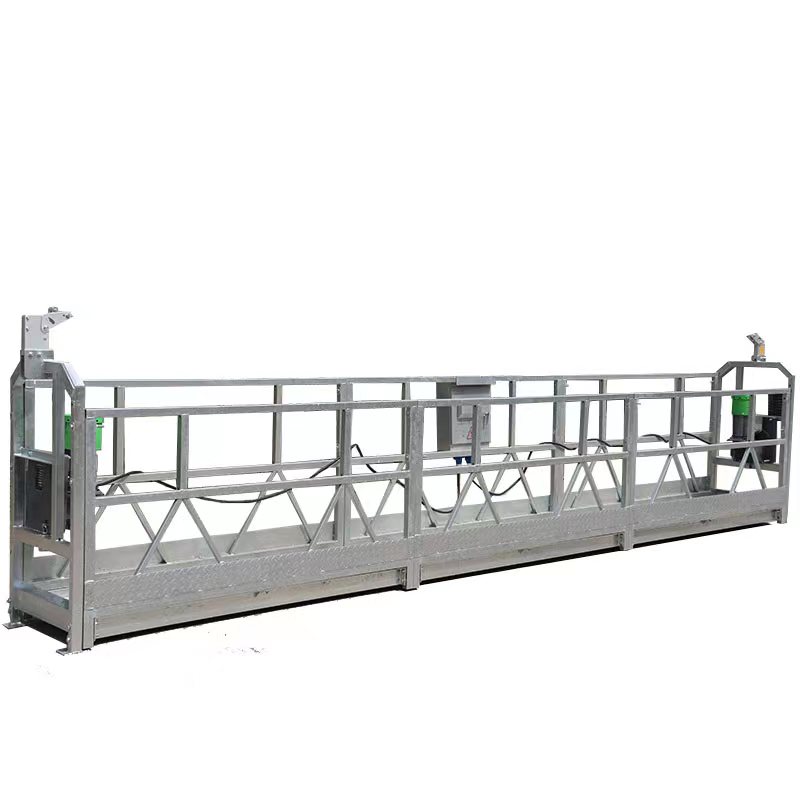

Product Pictures

Stirrup Suspended Platform

Product Inspection

Stirrup Suspended Platform operation in the installation inspection is mainly reflected in the following aspects:

Stirrup gondola main force components (suspension platform, suspension hanging machine) whether deformation, welds have cracks;

Whether the wire rope is serious corrosion, whether loose strands, kinks or serious broken wire, wire rope clamping is accurate and reliable;

The electrical control system action is flexible, unlocking and locking function is normal;

The safety lock action is flexible, lock and lock function is normal;

Stirrup cradle whether according to the requirements of the proper limit block and wire rope weight hammer.

Stirrup Suspended Platform

About Company

ShanDong RuiErTe Electrical Technology Co., Ltd.was founded in 2018, registered capital of 8 million yuan, located in Ningjin County, Dezhou City, to "exquisite technology, reliable quality, service quality" to create customer satisfaction hanging basket products.

Stirrup Suspended Platform

Factory environment

Stirrup Suspended Platform

Multiple application project

The use of building hanging baskets has gradually become a trend, and has been widely recognized in the construction of external walls of high-rise multi-storey buildings, curtain wall installation, insulation construction and maintenance and cleaning of external walls and other high operations
