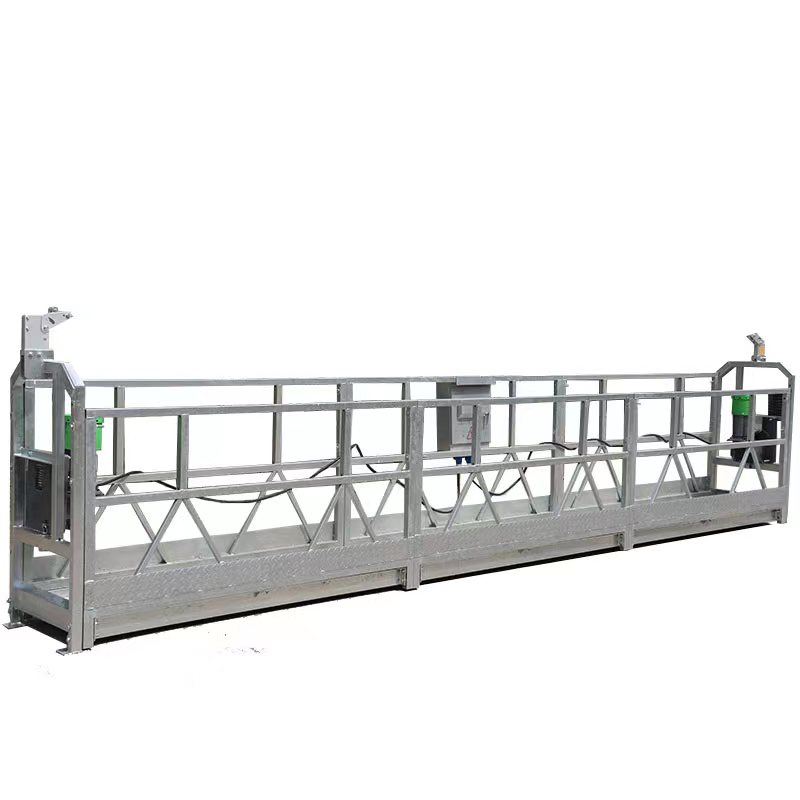

Two Point Suspended Scaffold

Our Two Point Suspended Scaffold is the perfect solution for high-rise projects that require two workers to be suspended at once. This scaffold system features a sturdy design with durable materials and two suspension points for added stability. With a max weight capacity of 1000kg, it can handle tough jobs with ease. The scaffold system is easy to set up and can be adjusted to suit your specific needs. Our scaffold is perfect for painting, construction, and maintenance projects on high-rise buildings. Trust in our Two Point Suspended Scaffold for all your high-rise needs.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product description

Two Point Suspended Scaffold of suspension mechanism, suspension platform, hoist, safety lock, working wire rope, safety wire rope and electrical box and electrical control system and other main parts. In order to facilitate the transportation and handling, manufacturers in the product factory transportation according to components or groups, parts for decomposition, to the construction site after assembling into a whole machine.

The lifting movement of the electric cradle self-lifting scaffold is realized by manually or electrically inverted chain alternately lifting and lowering the movable frame and fixed frame. From the point of view of the structure of the lifting frame, the movable frame and the fixed frame are able to carry out the up and down relative movement between them. When the scaffolding is working, the movable frame and fixed frame are anchored to the wall with attached wall bolts, and there is no relative movement between the two frames. When the scaffolding needs to lift, Hebei galvanized basket activity frame and fixed frame in a frame is still anchored to the wall, the use of inverted chain to lift the other frame, between the two frames will produce relative movement. By alternately attaching the movable frame and fixed frame to the wall and lifting each other, the scaffolding can be lifted layer by layer along the pre-drilled holes on the wall.

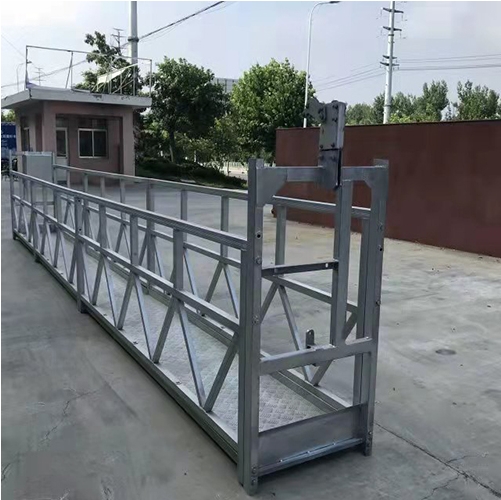

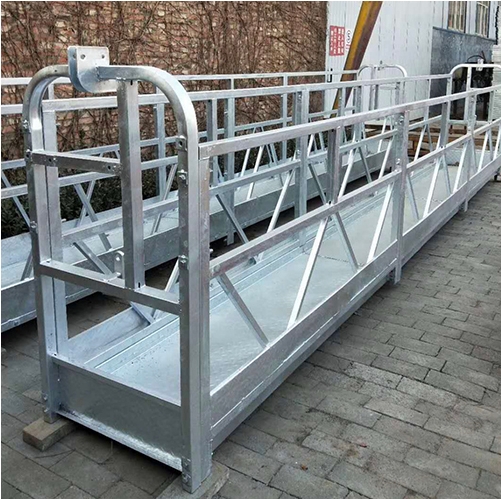

Two Point Suspended Scaffold

Technical Parameters

appearance	painting/hot galvanized
fabrication material	steel/aluminum alloy
rated load	150kg	500kg	630kg	800kg	1000kg
lifting speed	9-11m/min	9-11m/min	9-11m/min	8-10m/min	8-10m/min
motor power	1.5kw	2x1.5kw	2x1.5kw	2x1.8kw	2x2.2kw
brake torque	16kN	2x16kN	2x16kN	2x16kN	2x16kN
steel rope angle adjusting range	3°-8°	3°-8°	3°-8°	3°-8°	3°-8°
distance between two steel rope	≤100mm	≤100mm	≤100m	≤100m	≤100m
counter weight(optional)	25kgx20pcs	25kgx30pcs	25kgx36pcs	25kgx40pcs	25kgx44pcs
diameter of steel rope	8.3mm	8.3mm	8.3mm	9.1mm	10.2mm
max lifting height(m)	300m	300m	300m	300m	300m
motor rotation speed	1420r/min	1420r/min	1420r/min	1420r/min	1420r/min
voltage(3phases)(optional)	220v/380v/415v/440v 50hz/60hz to be OEM

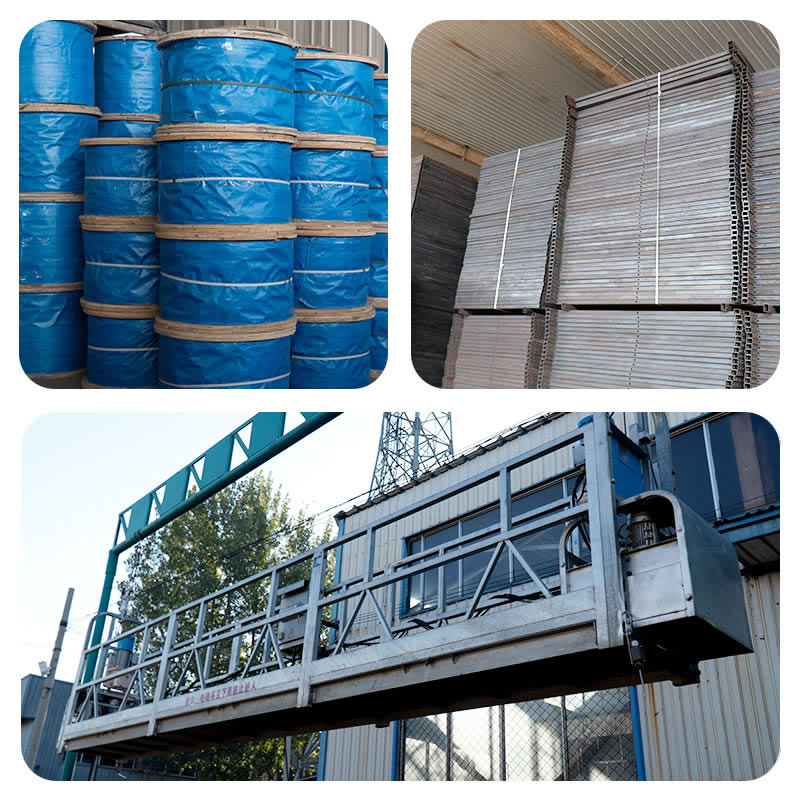

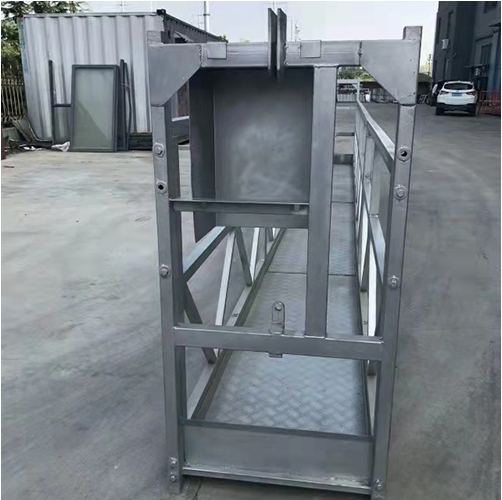

Two Point Suspended Scaffold

About Company

Based on the industry , create exclusive products

Shandong Ruierte Electromechanical Technology Co., Ltd. is a private sole proprietorship enterprise. It is located in Dezhou City, which is at the junction of Shandong Province and Hebei Province. It covers an area of 30 acres and has more than 50 employees. The annual sales volume exceeds 20,000 units. The company has first - class cranes. Basket experts and senior technicians. It has advanced design centers, manufacturing centers and testing centers. It has always been known for its "leading technology, superior performance, reliable quality and excellent service".

Shandong Ruierte Electromechanical Technology Co., Ltd

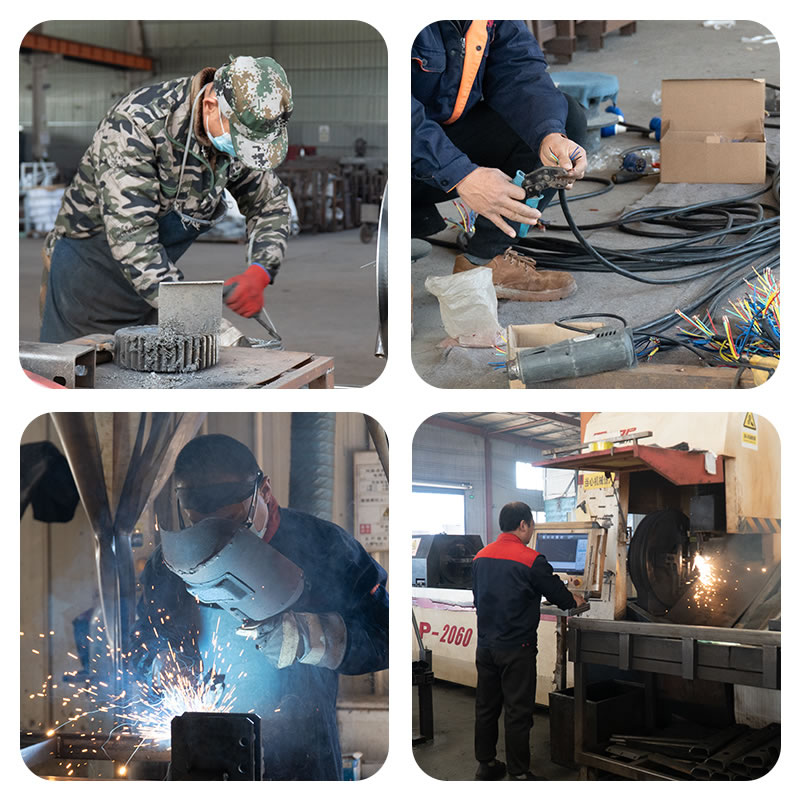

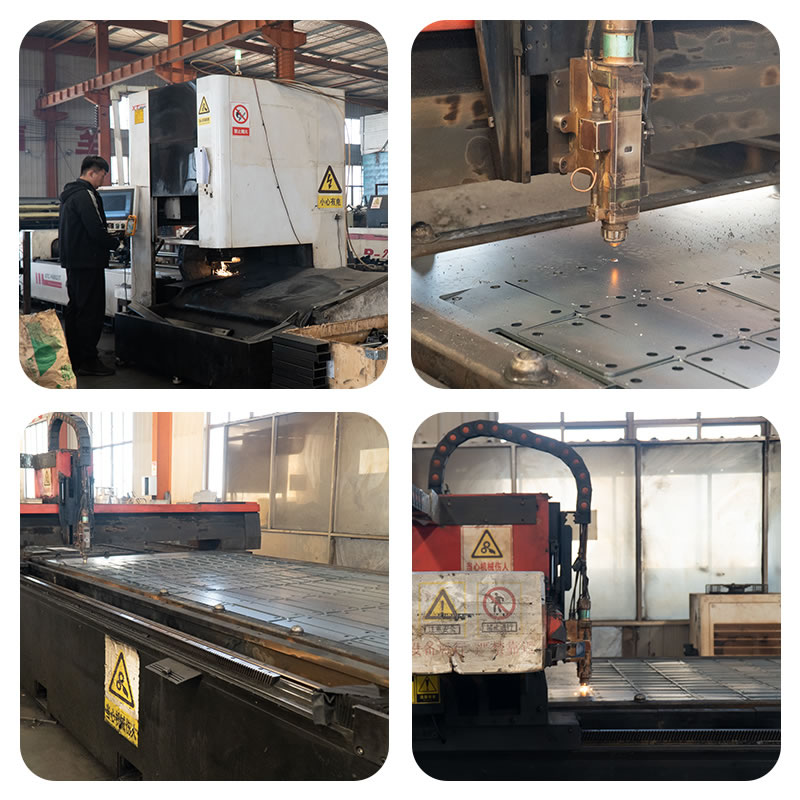

Factory environment

Qualification Honors

Sales Countries

FAQ

Q1. How much is this Two Point Suspended Scaffold ?
A:Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.

Q2. Are you a factory or trading company?
A:We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.

Q3. What quality certificate you own for your products?
A:Our products own EAC, CE and ISO9001 certificate.

Q4. How about the price?
A:Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.

Q5. Delivery time?
A:According to order quantity, 10-20 working days will be finished after getting the deposit.
