Suspended Scaffolding For Construction

Why Suspended Platform Cradles?

1. The most stable and secure while moving and working.

2. Easy to disassemble, assemble operate and maintain.

3. With a wide range of accessories Suspended Platform cradle can be adapted, as standard to many site configurations.

4. Composed of 70% aluminum, they are both lightweight and corrosion resistant.

5. Easy to transport where each platform is packed in its own box.

6. Works and fits tanks, bridge piers or towers.

7. Anti-slipping aluminum base platform.

8. Cradle is provided with soft non-marking facade rollers, to protect facade from any damages during operation manual lowering in case of power or winch failure.

9. Has electrical of IP 54 protection.

10. Cradle is equipped with anti-tilt and anti-fall arrest safety brake devices. 11. Castor wheels for transportatio.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product description

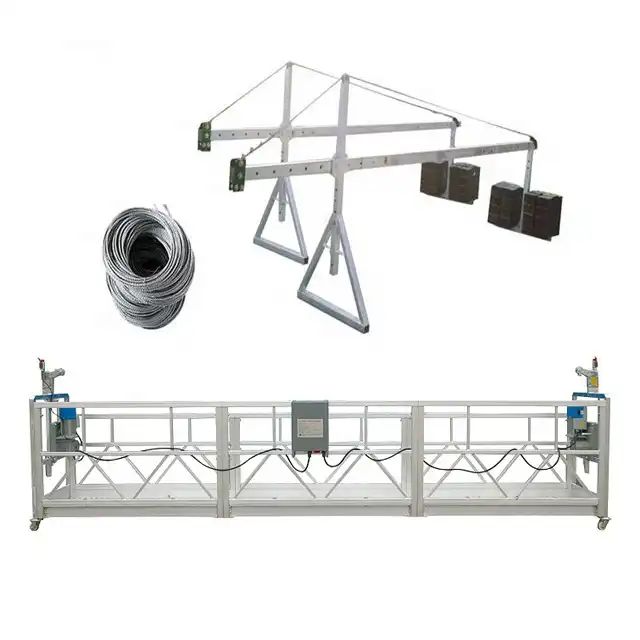

Suspended Scaffolding For Construction is mainly composed by suspension mechanism, hoist, safety lock, electric control box, working platform.Its structure is reasonable and easy to operate.It can be assembled and disassembly accroding to the actual Demand.The cleaning platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building.

Why Suspended Scaffolding For Construction?

1. The most stable and secure while moving and working. 2. Easy to disassemble, assemble operate and maintain. 3. With a wide range of accessories Suspended Platform cradle can be adapted, as standard to many site configurations. 4. Composed of 70% aluminum, they are both lightweight and corrosion resistant. 5. Easy to transport where each platform is packed in its own box. 6. Works and fits tanks, bridge piers or towers. 7. Anti-slipping aluminum base platform. 8. Cradle is provided with soft non-marking facade rollers, to protect facade from any damages during operation manual lowering in case of power or winch failure. 9. Has electrical of IP 54 protection. 10. Cradle is equipped with anti-tilt and anti-fall arrest safety brake devices. 11. Castor wheels for transportatio.

Suspended Scaffolding For Construction
Type	Bolt Type
1. Rated Load	630kg
2. Lifting speed	9.3m/min
3. Lifting height	150m
4. Hoist	LTD6.3
4.1 Power	1.5kw, 2 Pcs
4.2 Voltage	380V 50Hz 3PH
5. Safety Lock	LSG30, use 8.3mm Steel Rope
6. Electric Cabinet	380V 50Hz 3PH, CHNT
7. Working Cage	1 set Steel+Galvanized
Working Cage Size	L=6m(2+2+2), W=0.69m, H=1.18m
8. Roof Structure	2 sets, Steel+Galvanized
8.1 Front Beam Extension	1.3m--1.6m
8.2 Beam Adjustable Height	1.06m--1.66m
9. Steel Wire Rope	4pcs; 100m/pcs, D=8.3mm;
10. Safety Rope	1 Pcs, 100m/pcs
11. Electric Cable	1 Pcs, 100m/pcs, 2.0mm2
12. Counterweight (Optional)	Cement, 900kg, 36 pcs, 25kg/pcs
13. Gross Weight （without Counterweight)	900Kg
14. Total Volume (without counterweight)	3CBM
15. Loading quantity of one 20" Container	13 sets

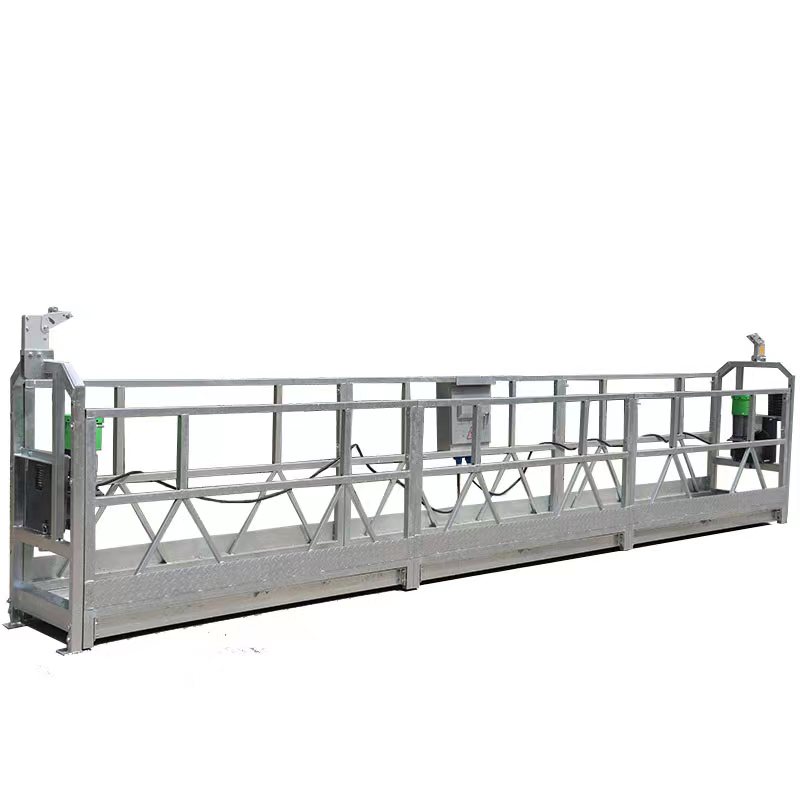

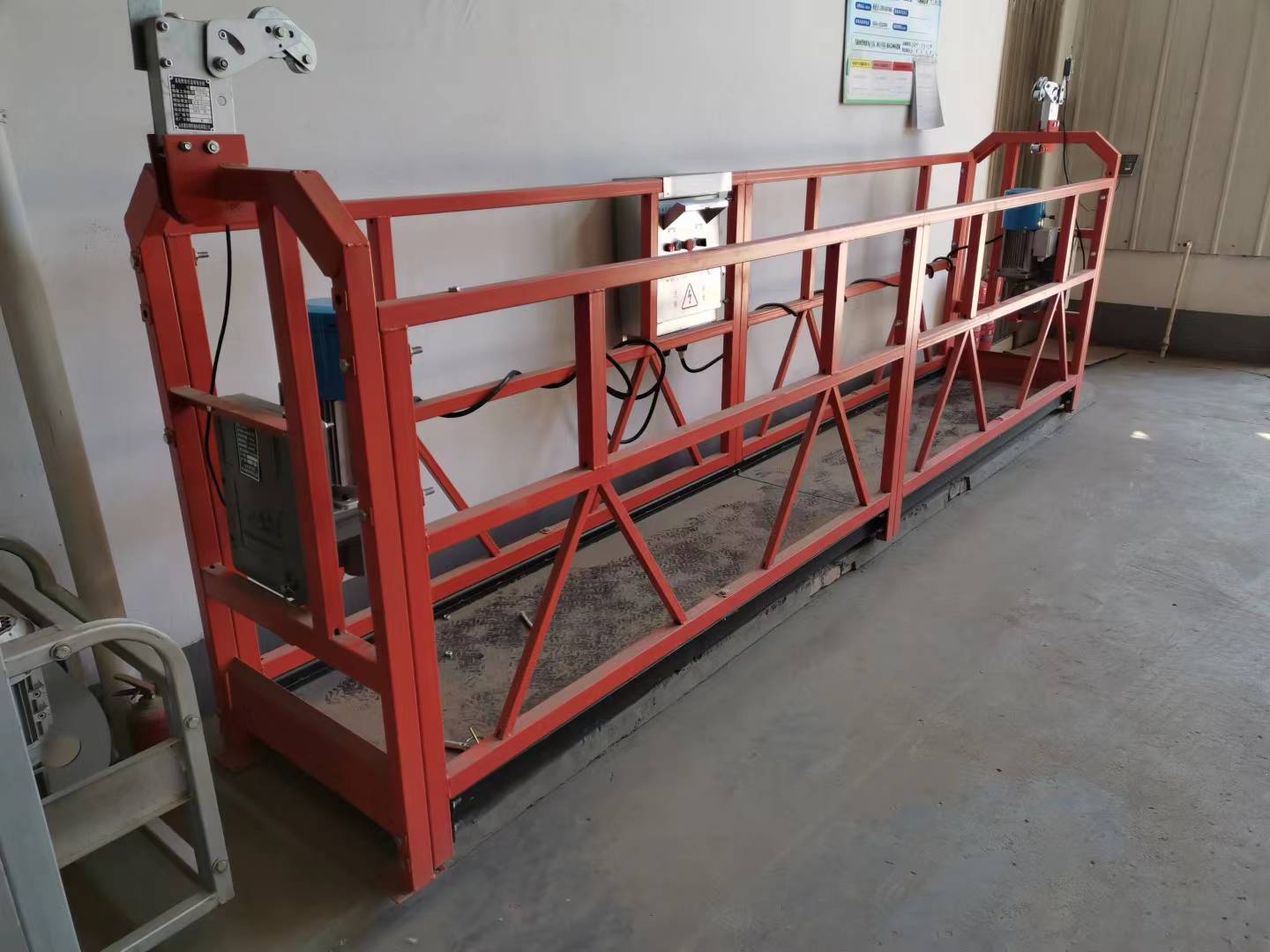

Product Pictures

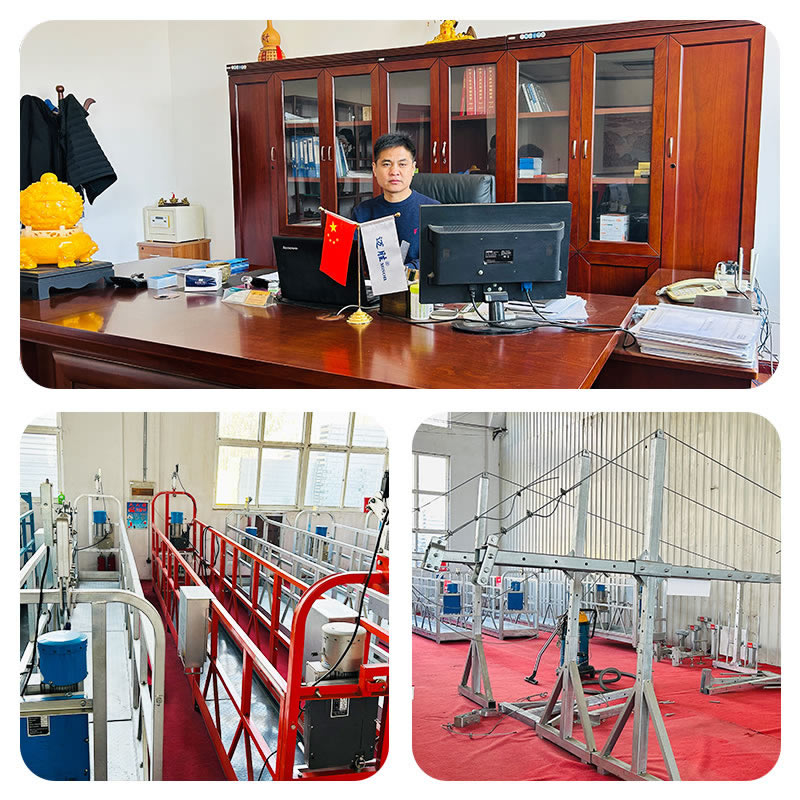

About Company

Based on the industry , create exclusive products

ShanDong RuiErTe Electrical Technology Co., Ltd. is a private sole proprietorship enterprise. It is located in Dezhou City, which is at the junction of Shandong Province and Hebei Province.

Relying on the excellent product quality and perfect service system for many years, Ruierte hanging basket has always made every product satisfactory to users, and is willing to develop together with colleagues from all walks of life to create brilliant!

Qualification Honors

Sales Countries

Payment and Transportation

FAQ

Q1. How much is this Suspended Scaffolding For Construction ?
A:Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.

Q2. Are you a factory or trading company?
A:We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.

Q3. Spare parts & guarantee?
A:If any parts get damaged because of quality within 12 months after shipping date. We will send new parts to replace right away.

Q4. Can you make Suspended Scaffolding For Construction with our brand?
A:Yes.

Q5. Delivery time?
A:According to order quantity, 10-20 working days will be finished after getting the deposit.
