Single Point Suspended Scaffold

Single Point Suspended Scaffold is a safe and efficient solution for overhead maintenance work. It utilizes a single point suspension system which allows for easy movement around the work area. The platform is constructed with high quality materials, making it durable and long-lasting. This scaffold is ideal for use in a variety of environments, such as construction sites, factories, or high-rise buildings. Its compact design means that it is easy to store when not in use, and it is easily transportable. With its efficient and safe design, the Single Point Suspended Scaffold is an excellent choice for any overhead maintenance project.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product description

Single Point Suspended Scaffold is a construction tool for high altitude work in construction projects, which is useful for curtain wall installation and exterior wall cleaning. The single point suspended scaffold is a new type of overhead work equipment that can replace traditional scaffolding, can reduce labor intensity, improve work efficiency, and can be reused. The use of construction cradle has gradually become a trend, in the high-rise multi-storey high building of the external wall construction, curtain wall installation, insulation construction and maintenance and cleaning of external walls and other high-rise operations have been widely recognized, and at the same time can be used for large tanks, bridges and dams and other engineering operations. Using this product, scaffolding can be exempted. It makes the construction cost lower, the construction cost is 28% of the traditional scaffolding, and the working efficiency is greatly improved.

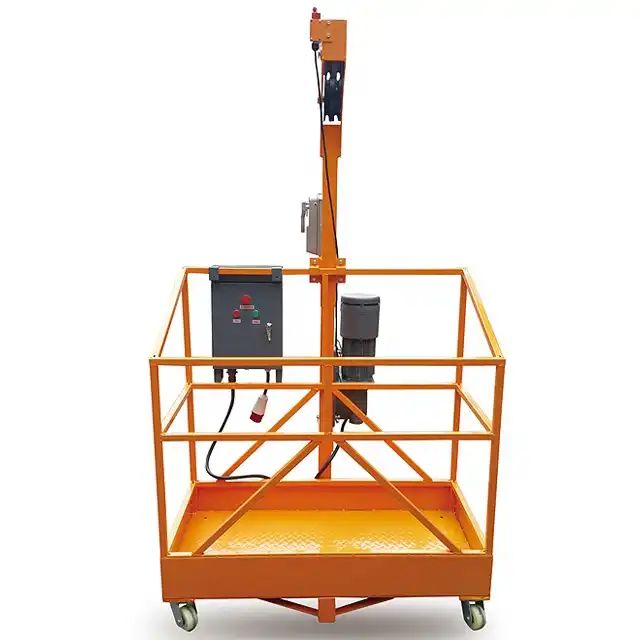

Single Point Suspended Scaffold

Technical Parameters

appearance	painting/hot galvanized
fabrication material	steel/aluminum alloy
rated load	150kg	500kg	630kg	800kg	1000kg
lifting speed	9-11m/min	9-11m/min	9-11m/min	8-10m/min	8-10m/min
motor power	1.5kw	2x1.5kw	2x1.5kw	2x1.8kw	2x2.2kw
brake torque	16kN	2x16kN	2x16kN	2x16kN	2x16kN
steel rope angle adjusting range	3°-8°	3°-8°	3°-8°	3°-8°	3°-8°
distance between two steel rope	≤100mm	≤100mm	≤100m	≤100m	≤100m
counter weight(optional)	25kgx20pcs	25kgx30pcs	25kgx36pcs	25kgx40pcs	25kgx44pcs
diameter of steel rope	8.3mm	8.3mm	8.3mm	9.1mm	10.2mm
max lifting height(m)	300m	300m	300m	300m	300m
motor rotation speed	1420r/min	1420r/min	1420r/min	1420r/min	1420r/min
voltage(3phases)(optional)	220v/380v/415v/440v 50hz/60hz to be OEM

NameTechnical paramete

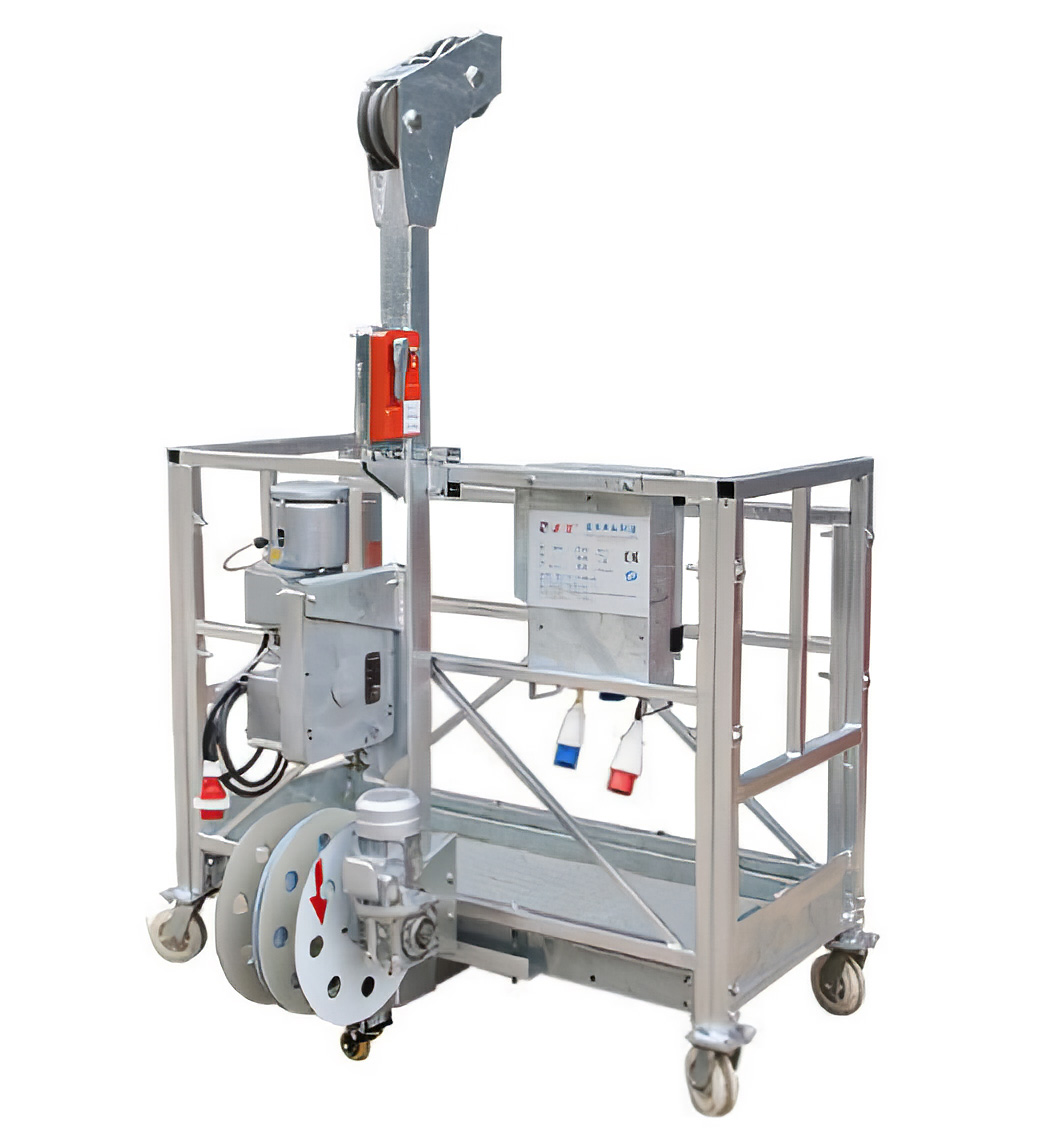

Single Point Suspended Scaffold

About Company

ShanDong RuiErTe Electrical Technology Co., Ltd

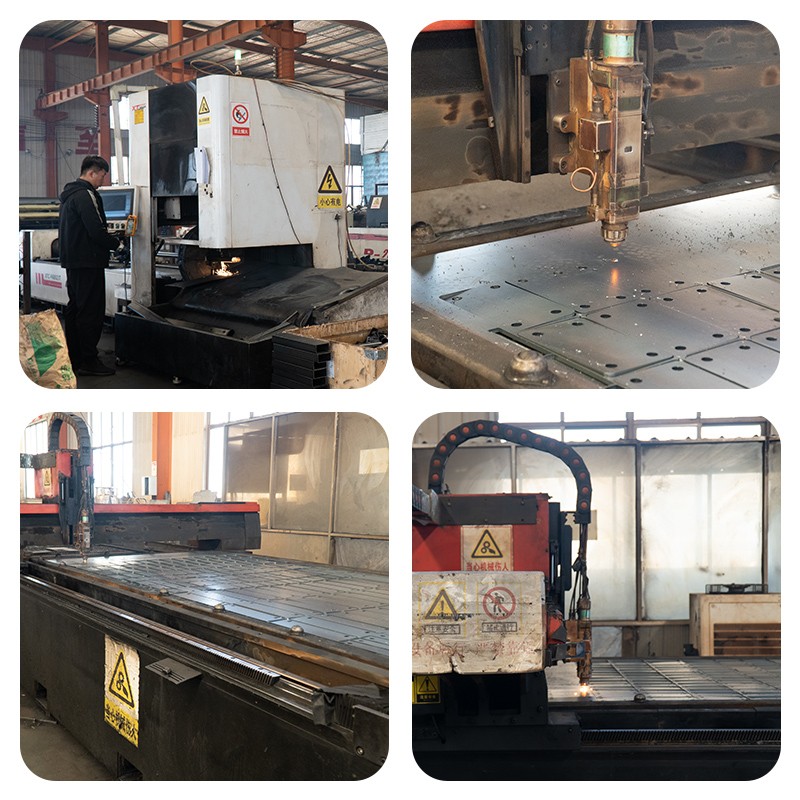

Factory environment

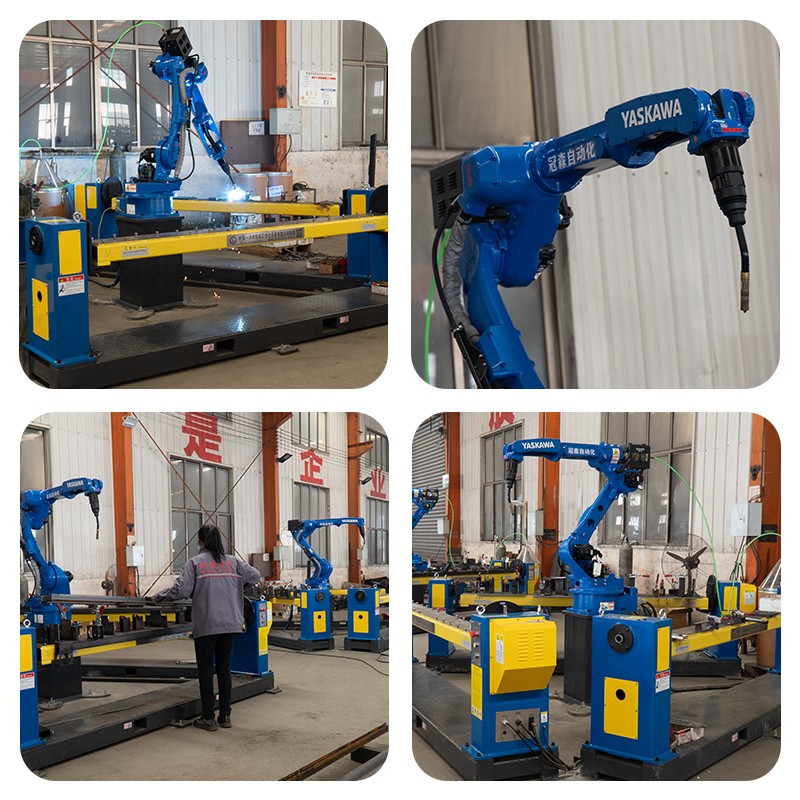

Factory environment

Qualification Honors

Payment and Transportation

FAQ

Q1. How much is this Single Point Suspended Scaffold ?
A:Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.

Q2. Are you a factory or trading company?
A:We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.

Q3. Spare parts & guarantee?
A:If any parts get damaged because of quality within 12 months after shipping date. We will send new parts to replace right away.

Q4. Can you make Single Point Suspended Scaffold with our brand?
A:Yes.
