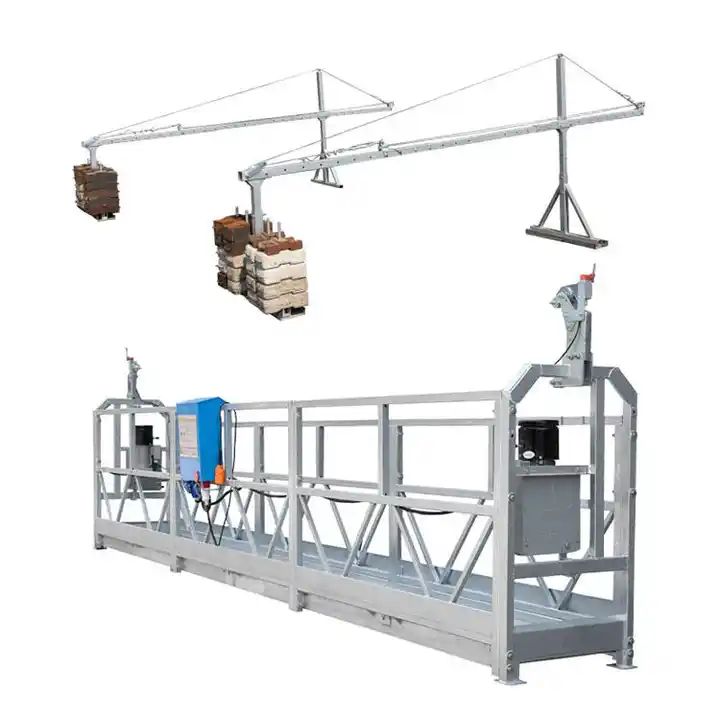

Galvanized Suspended Platform

Galvanized Suspended Platform is an essential piece of equipment used in various construction projects. It is a temporary structure that is used to elevate workers, materials, and other equipment to a certain height for construction and maintenance purposes. This platform is made of high-quality galvanized steel, which provides added durability and resistance to corrosion and rust, making it ideal for use in harsh environments.

The platform comes with a variety of features and can be customized to meet the specific needs of different projects. It usually includes a working deck, guardrails, a hoist system, and a trolley that runs along the platform's track. The working deck provides a safe and stable working surface for the workers, while the guardrails ensure their safety by preventing falls. The hoist system and trolley are used to lift and lower the platform and control its movement along the track.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product description

Galvanized Suspended Platform are reliable and secure, ensuring that the project is completed safely and efficiently. The galvanized steel is treated with a layer of zinc coating that protects it from damage caused by exposure to moisture and environmental elements. The corrosion-resistant properties of this coating help to prolong the lifespan of the platform, reducing maintenance costs.

The platform is easy to install and operate, making it an ideal choice for a wide range of construction projects, including high-rise buildings, bridges, and other tall structures. It is also a cost-effective option that helps to save time and labor costs.

In conclusion, the Galvanized Suspended Platform is a versatile and durable piece of equipment used in the construction industry to elevate workers and materials safely and efficiently. With its corrosion-resistant properties and customizable features, it offers a reliable solution for various types of construction projects.

Technical Parameters

appearance	painting/hot galvanized
fabrication material	steel/aluminum alloy
rated load	150kg	500kg	630kg	800kg	1000kg
lifting speed	9-11m/min	9-11m/min	9-11m/min	8-10m/min	8-10m/min
motor power	1.5kw	2x1.5kw	2x1.5kw	2x1.8kw	2x2.2kw
brake torque	16kN	2x16kN	2x16kN	2x16kN	2x16kN
steel rope angle adjusting range	3°-8°	3°-8°	3°-8°	3°-8°	3°-8°
distance between two steel rope	≤100mm	≤100mm	≤100m	≤100m	≤100m
counter weight(optional)	25kgx20pcs	25kgx30pcs	25kgx36pcs	25kgx40pcs	25kgx44pcs
diameter of steel rope	8.3mm	8.3mm	8.3mm	9.1mm	10.2mm
max lifting height(m)	300m	300m	300m	300m	300m
motor rotation speed	1420r/min	1420r/min	1420r/min	1420r/min	1420r/min
voltage(3phases)(optional)	220v/380v/415v/440v 50hz/60hz to be OEM

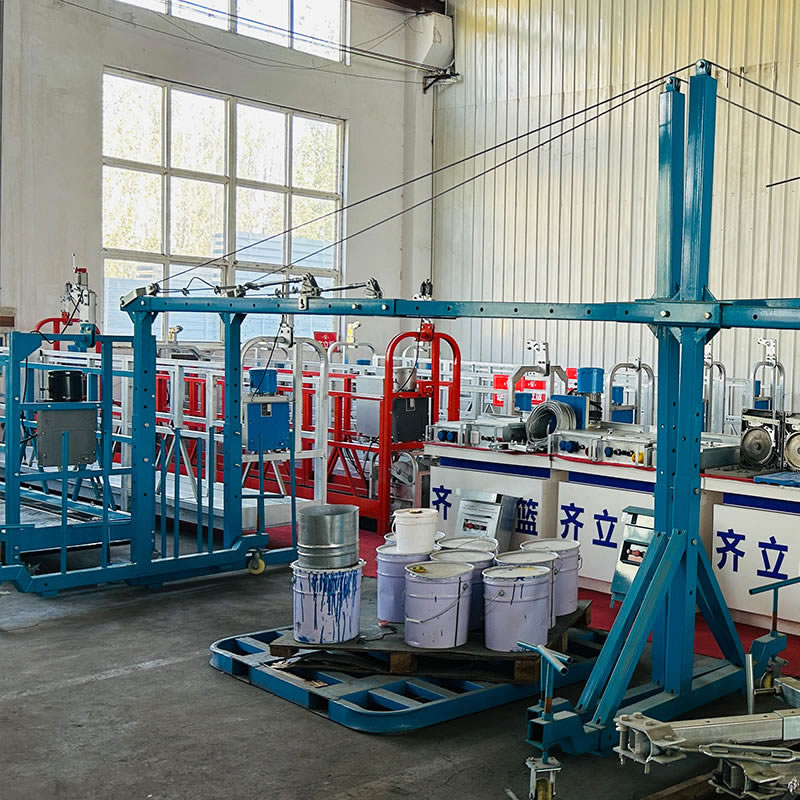

Product Pictures

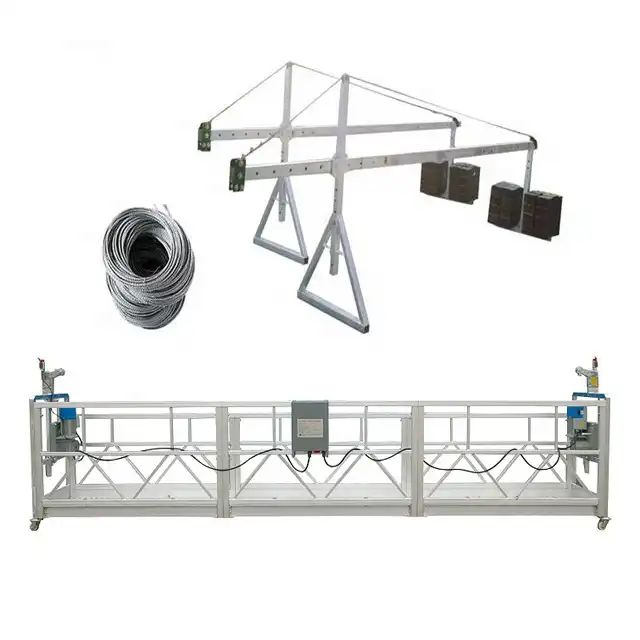

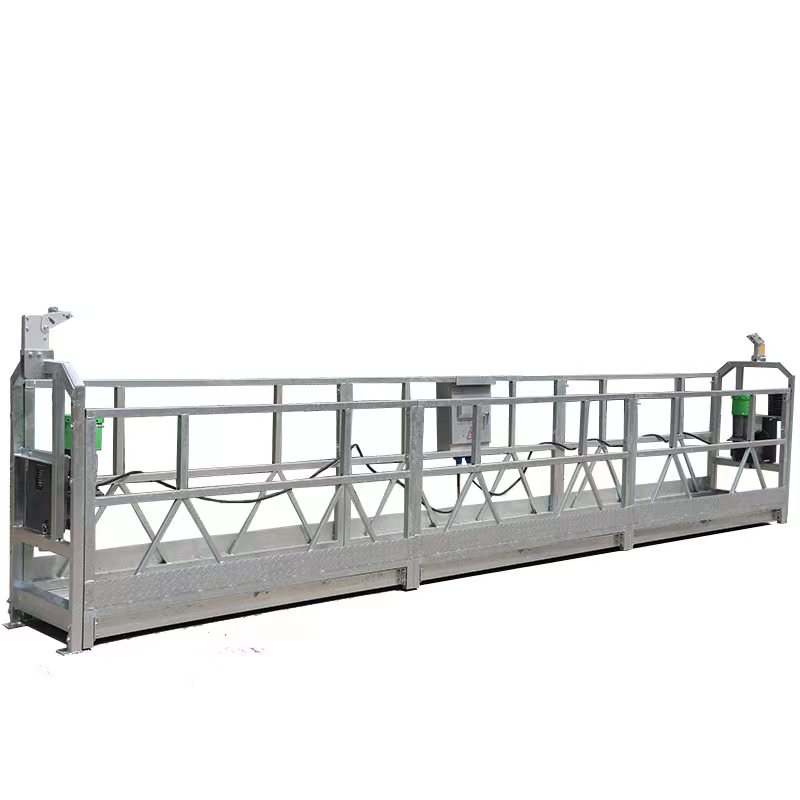

Galvanized Suspended Platform

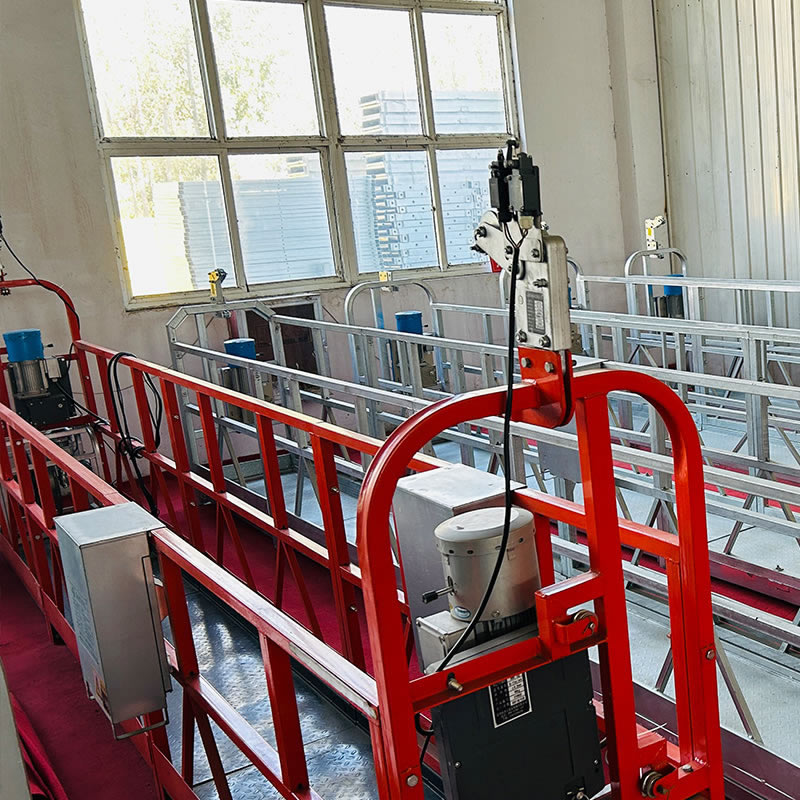

Product Inspection

Galvanized Suspended Platform operation in the installation inspection is mainly reflected in the following ten aspects:

Stirrup gondola main force components (suspension platform, suspension hanging machine) whether deformation, welds have cracks;

Whether the fasteners are missing or loose at the connection of the components;

Stirrups basket hanging mechanism is installed reliably and securely, whether the counterweight meets the requirements;

Whether the wire rope is serious corrosion, whether loose strands, kinks or serious broken wire, wire rope clamping is accurate and reliable;

The electrical control system action is flexible, unlocking and locking function is normal;

The safety lock action is flexible, lock and lock function is normal;

Ascending and descending (including manual descending and sliding) operation is normal, electromagnetic brake clearance is in line with the requirements;

The operation of the counting action is normal, whether the operation of the phenomenon of obstruction, whether the abnormal noise, motor fever or smoke, burnt flavor;

Speed reducer and transmission device whether according to the requirements of filling or replacement of lubricating oil;

Stirrup cradle whether according to the requirements of the proper limit block and wire rope weight hammer.

Galvanized Suspended Platform

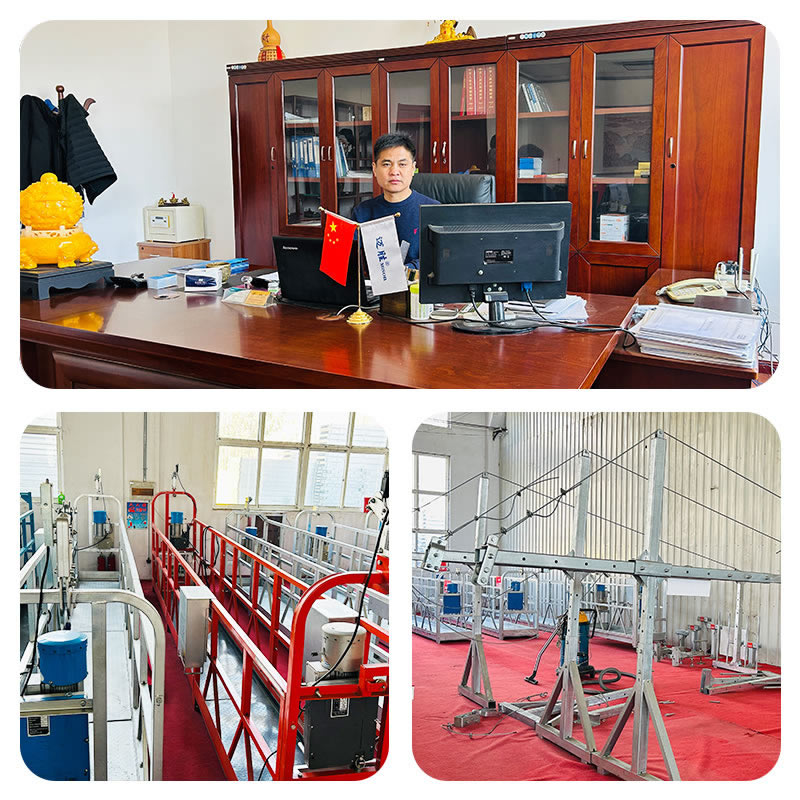

About Company

Based on the industry , create exclusive products

ShanDong RuiErTe Electrical Technology Co., Ltd. is a private sole proprietorship enterprise. It is located in Dezhou City, which is at the junction of Shandong Province and Hebei Province. It covers an area of 30 acres and has more than 50 employees. The annual sales volume exceeds 20,000 units.

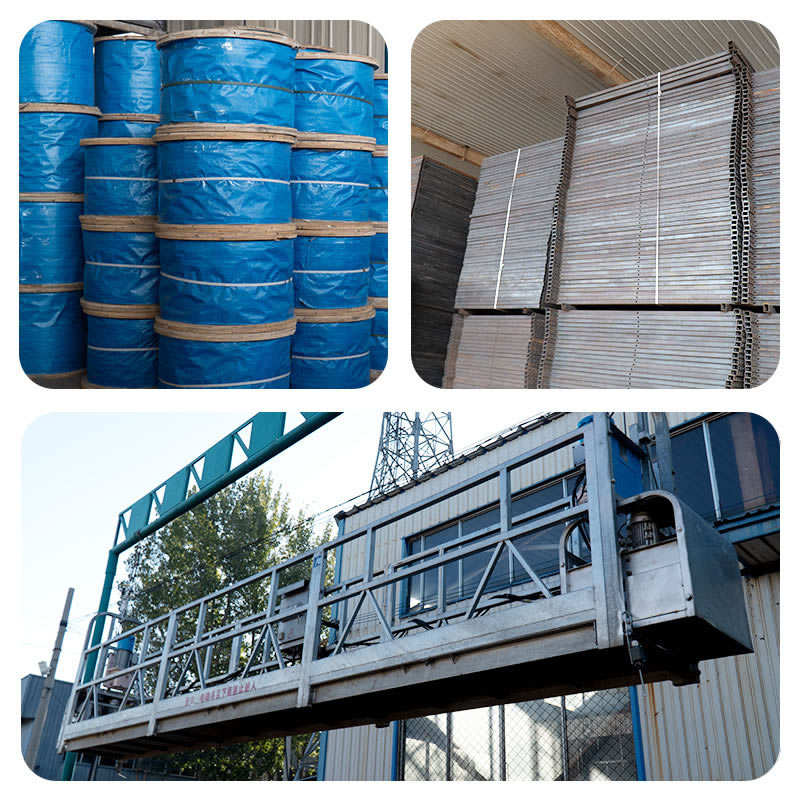

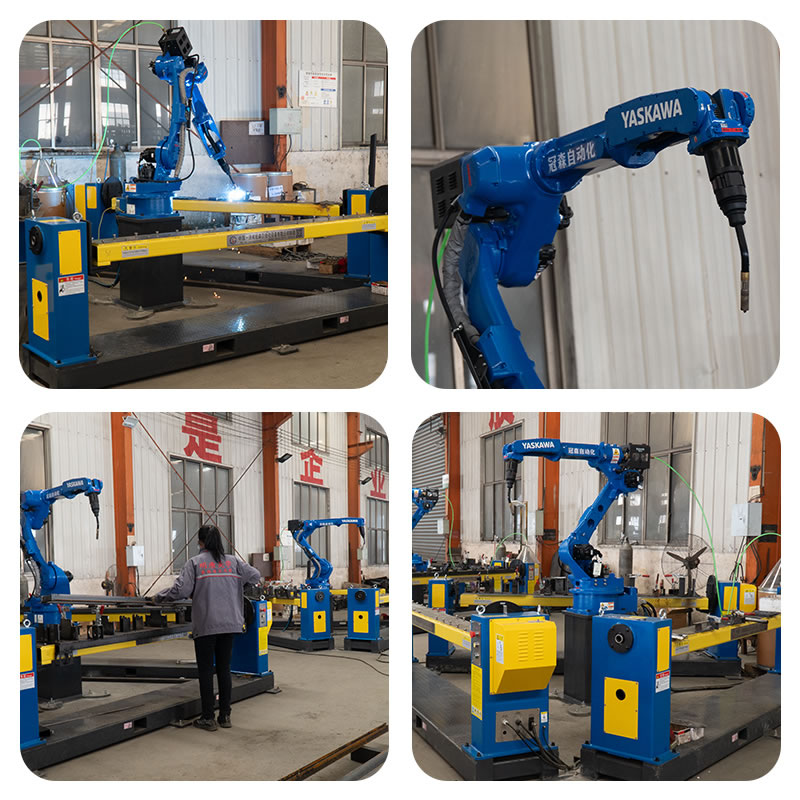

Factory environment

Qualification Honors

Sales Countries

FAQ

Q1. How much is this Galvanized Suspended Platform ?
A:Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.

Q2. Payment term?
A:T/T or L/C at sight.

Q3. Spare parts & guarantee?
A:If any parts get damaged because of quality within 12 months after shipping date. We will send new parts to replace right away.

Q4. Can you make Galvanized Suspended Platform with our brand?
A:Yes.

Q5. Delivery time?
A:According to order quantity, 10-20 working days will be finished after getting the deposit.
