Special Shaped Suspension Platform

Our Special Shaped Suspension Platform is specifically designed to meet the needs of irregularly-shaped buildings. With its unique shape and configuration, it can adapt to a wide range of building shapes, providing a safe platform for workers to perform their tasks at heights. It is made using high-quality materials and advanced manufacturing techniques, ensuring durability and reliability even in tough working conditions. Our special-shaped suspension platform also comes equipped with safety features such as anti-tilt sensors, emergency stop buttons, and overload protection, which guarantee the safety of workers at all times. Contact us today to find out how our special-shaped suspension platform can help you with your complex building needs.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product description

Our special-shaped suspension platform is specifically designed to meet the needs of irregularly-shaped buildings. With its unique shape and configuration, it can adapt to a wide range of building shapes, providing a safe platform for workers to perform their tasks at heights. It is made using high-quality materials and advanced manufacturing techniques, ensuring durability and reliability even in tough working conditions. Our Special Shaped Suspension Platform also comes equipped with safety features such as anti-tilt sensors, emergency stop buttons, and overload protection, which guarantee the safety of workers at all times. Contact us today to find out how our Special Shaped Suspension Platform can help you with your complex building needs.

The suspension platform can be customized according to your requirements！

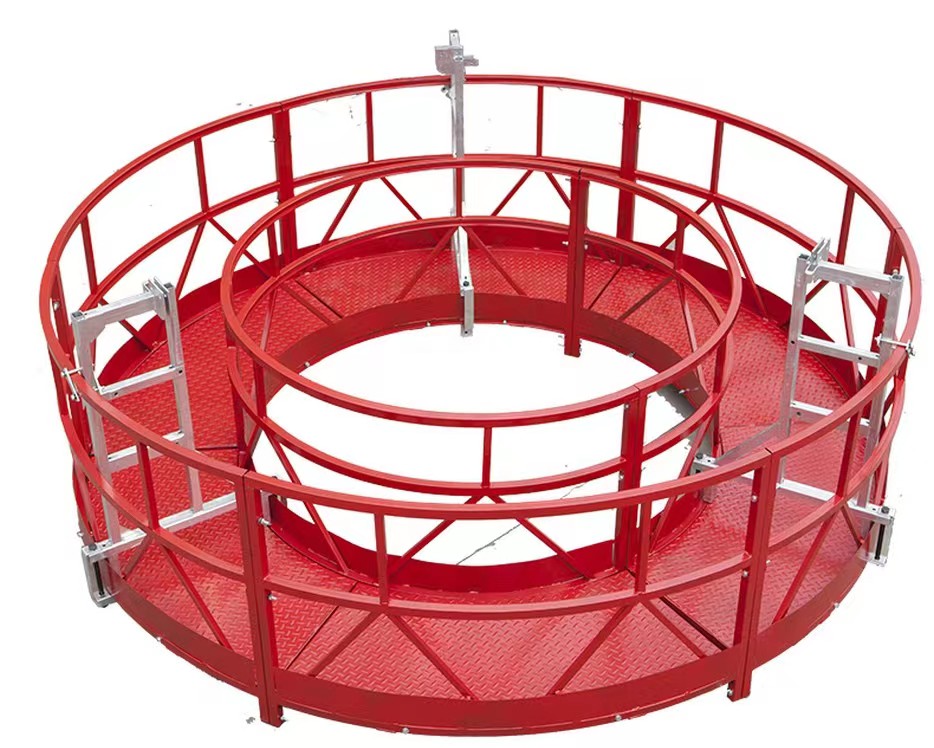

Special Shaped Suspension Platform

Technical Parameters

appearance	painting/hot galvanized
fabrication material	steel/aluminum alloy
rated load	150kg	500kg	630kg	800kg	1000kg
lifting speed	9-11m/min	9-11m/min	9-11m/min	8-10m/min	8-10m/min
motor power	1.5kw	2x1.5kw	2x1.5kw	2x1.8kw	2x2.2kw
brake torque	16kN	2x16kN	2x16kN	2x16kN	2x16kN
steel rope angle adjusting range	3°-8°	3°-8°	3°-8°	3°-8°	3°-8°
distance between two steel rope	≤100mm	≤100mm	≤100m	≤100m	≤100m
counter weight(optional)	25kgx20pcs	25kgx30pcs	25kgx36pcs	25kgx40pcs	25kgx44pcs
diameter of steel rope	8.3mm	8.3mm	8.3mm	9.1mm	10.2mm
max lifting height(m)	300m	300m	300m	300m	300m
motor rotation speed	1420r/min	1420r/min	1420r/min	1420r/min	1420r/min
voltage(3phases)(optional)	220v/380v/415v/440v 50hz/60hz to be OEM

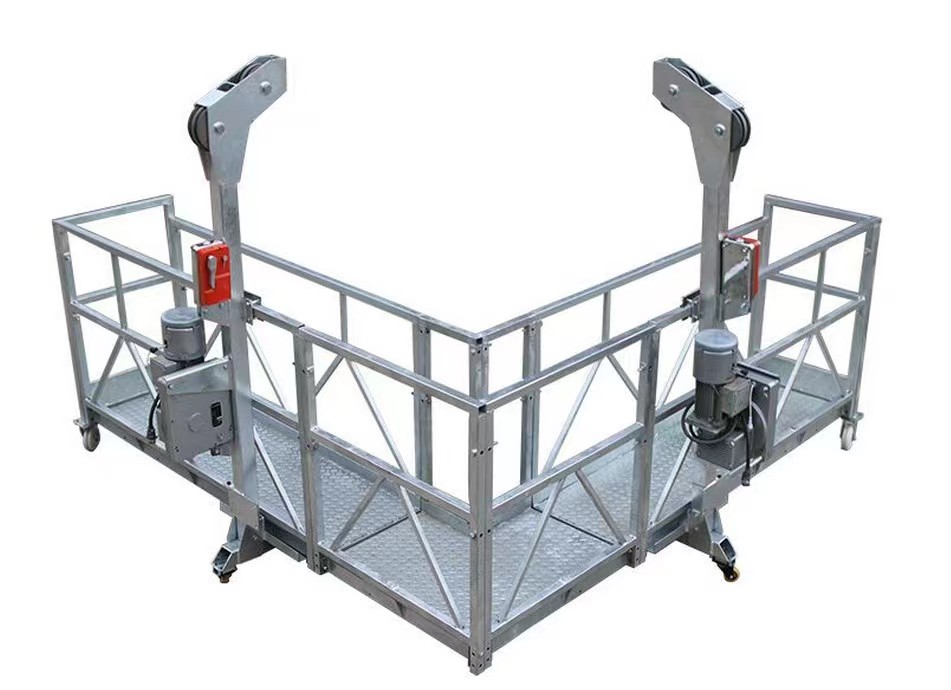

Special Shaped Suspension Platform

Product Inspection

Stirrup Suspended Platform operation in the installation inspection is mainly reflected in the following ten aspects:

Stirrup gondola main force components (suspension platform, suspension hanging machine) whether deformation, welds have cracks;

Whether the fasteners are missing or loose at the connection of the components;

Stirrups basket hanging mechanism is installed reliably and securely, whether the counterweight meets the requirements;

Whether the wire rope is serious corrosion, whether loose strands, kinks or serious broken wire, wire rope clamping is accurate and reliable;

About Company

ShanDong RuiErTe Electrical Technology Co., Ltd.was founded in 2018, registered capital of 8 million yuan, located in Ningjin County, Dezhou City, to "exquisite technology, reliable quality, service quality" to create customer satisfaction hanging basket products.
