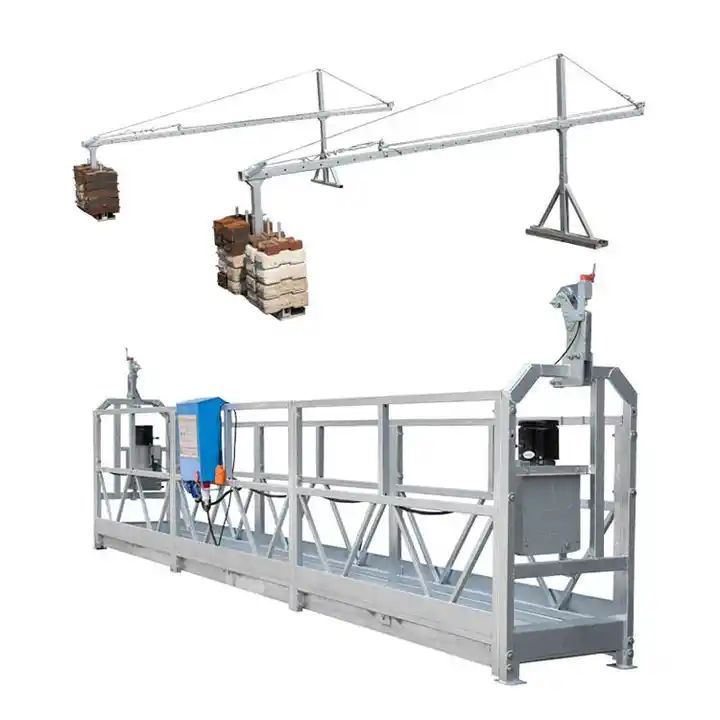

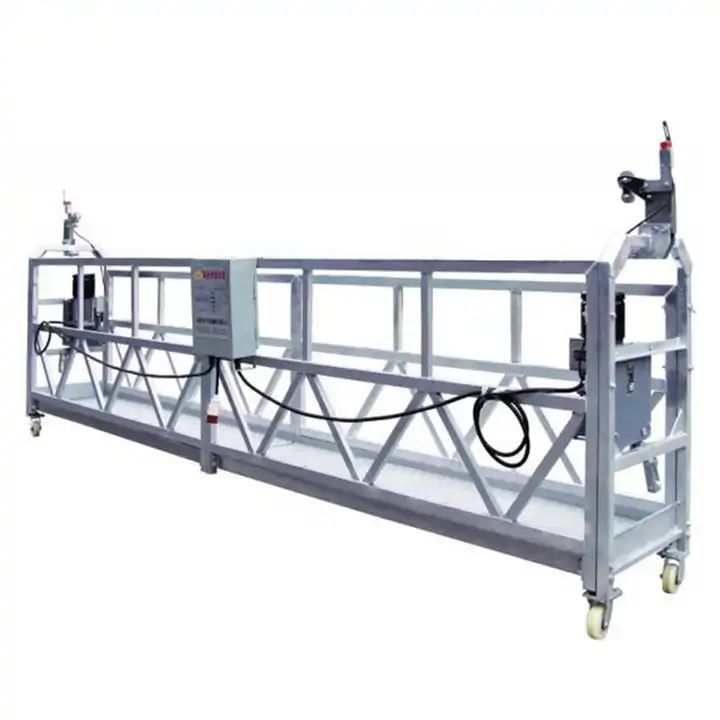

Construction Suspended Working Platform

Construction Suspended Working Platform is a crucial equipment used in the construction industry for the completion of high-rise building projects. The platform is suspended from the top of the building, providing workers access to the exterior of the building at various levels. This provides a safe working environment for the workers to carry out construction, repair, painting, and maintenance work with relative ease and comfort.

Contact Now E-Mail Telephone WhatsApp

Product Details

Our Construction Suspended Working Platform is made of robust materials and can withstand harsh weather conditions, strong winds, and heavy loads. It is designed with advanced security features guaranteeing the safety of workers while working on the platform.

The Suspended Working Platform is quite easy to operate and can be maneuvered upwards and downwards, sideways, and diagonally. This makes it a versatile platform that can be used to complete projects of diverse nature. The platform is also equipped with a brake and electric wires that provide power and allow for smooth movement of the personnel suspended by the platform.

Additionally, our Construction Suspended Working Platform is highly portable and can be easily transported and assembled on the construction site. It is also designed to be flexible and can be customized to fit the unique specifications and requirements of individual projects.

Our platform is reliable, durable, and designed to increase productivity by minimizing downtime and ensuring workers work comfortably and safely. It also meets all required safety regulations and standards to ensure that work is carried out to the highest possible quality.

At our company, we take pride in providing top-quality Construction Suspended Working Platforms that cater to your construction needs. Contact us today to get a superior quality suspended working platform that guarantees safety, comfort, and efficiency for your construction project.

Stirrup Cradle Technical Parameters

appearance	painting/hot galvanized
fabrication material	steel/aluminum alloy
rated load	150kg	500kg	630kg	800kg	1000kg
lifting speed	9-11m/min	9-11m/min	9-11m/min	8-10m/min	8-10m/min
motor power	1.5kw	2x1.5kw	2x1.5kw	2x1.8kw	2x2.2kw
brake torque	16kN	2x16kN	2x16kN	2x16kN	2x16kN
steel rope angle adjusting range	3°-8°	3°-8°	3°-8°	3°-8°	3°-8°
distance between two steel rope	≤100mm	≤100mm	≤100m	≤100m	≤100m
counter weight(optional)	25kgx20pcs	25kgx30pcs	25kgx36pcs	25kgx40pcs	25kgx44pcs
diameter of steel rope	8.3mm	8.3mm	8.3mm	9.1mm	10.2mm
max lifting height(m)	300m	300m	300m	300m	300m
motor rotation speed	1420r/min	1420r/min	1420r/min	1420r/min	1420r/min
voltage(3phases)(optional)	220v/380v/415v/440v 50hz/60hz to be OEM

Product Inspection

Stirrup Cradle operation in the installation inspection is mainly reflected in the following aspects:

Whether the fasteners are missing or loose at the connection of the components;

Stirrups basket hanging mechanism is installed reliably and securely, whether the counterweight meets the requirements;

The operation of the counting action is normal, whether the operation of the phenomenon of obstruction, whether the abnormal noise, motor fever or smoke, burnt flavor;

Speed reducer and transmission device whether according to the requirements of filling or replacement of lubricating oil;

Stirrup cradle whether according to the requirements of the proper limit block and wire rope weight hammer.

Construction Suspended Working Platform

About Company

Based on the industry , create exclusive products

ShanDong RuiErTe Electrical Technology Co., Ltd. is a private sole proprietorship enterprise. It is located in Dezhou City, which is at the junction of Shandong Province and Hebei Province. It covers an area of 30 acres and has more than 50 employees. The annual sales volume exceeds 20,000 units.

Construction Suspended Working Platform

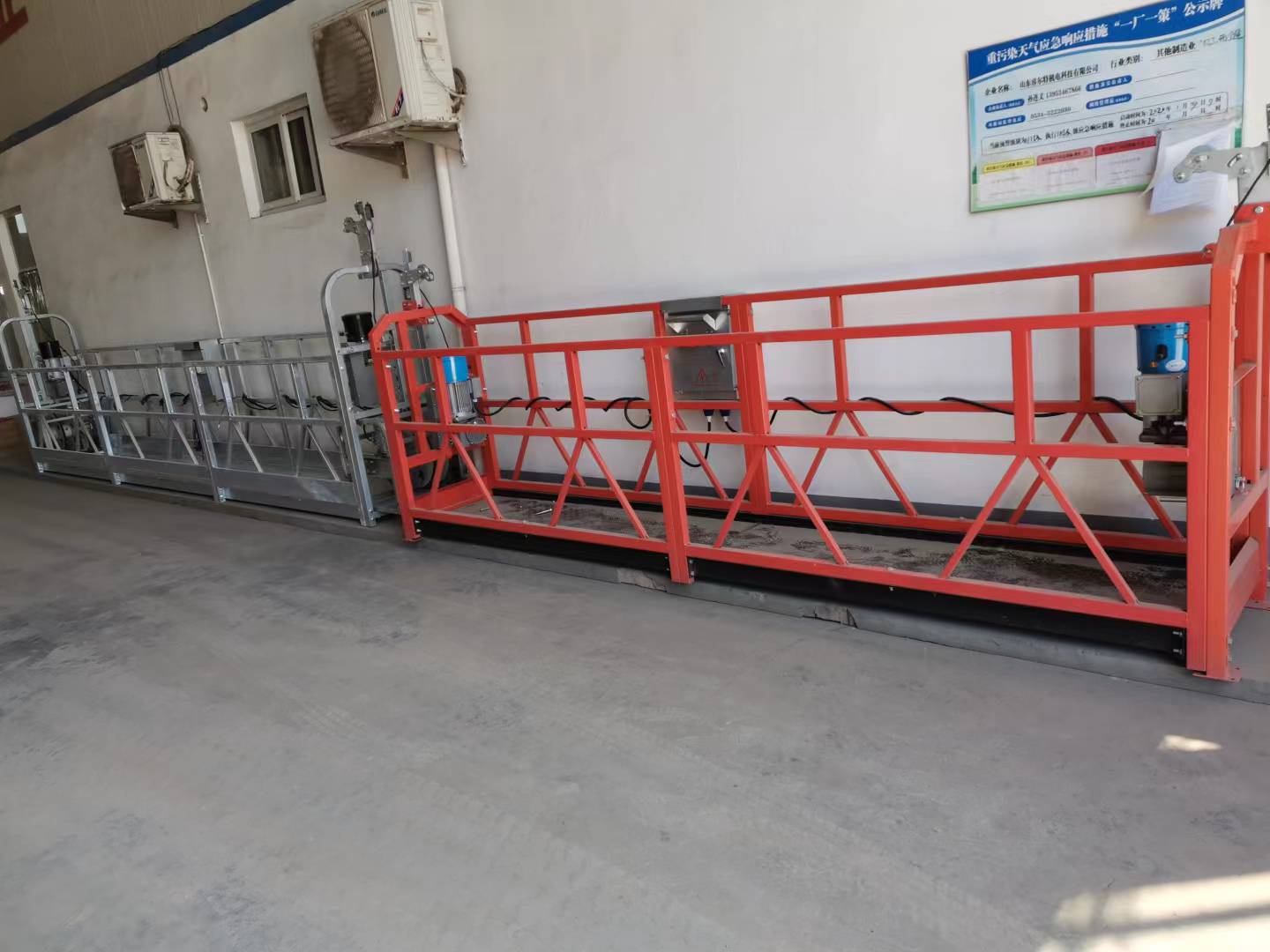

Factory environment

Qualification Honors

Sales Countries

FAQ

Q1. How much is this Construction Suspended Working Platform ?
A:Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.

Q2. Are you a factory or trading company?
A:We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.

Q3. What quality certificate you own for your products?
A:Our products own EAC, CE and ISO9001 certificate.
