Suspended Scaffolding For Cleaning

Suspended Scaffolding For Cleaning is a must-have for any building maintenance or cleaning task. It provides a safe and stable platform for workers to reach high places without the need for ladders or scaffolding structures that can interfere with pedestrian traffic. The system is perfect for cleaning windows, painting, and performing exterior repairs on buildings up to 50 stories tall.

Our suspended scaffolding system is designed for maximum safety, durability, and efficiency. It features a sturdy frame made from high-quality steel that can support up to 800kg of weight. The suspension system is also designed to be easy to use and adapt to different building types and heights. The system can be quickly assembled and disassembled, reducing labor times and streamlining the cleaning and maintenance process.

The suspended scaffolding system features a range of safety features, including anti-tilt and overload protection, and is compliant with the latest safety standards. The system also includes safety ropes, harnesses, and other fall protection equipment to ensure the safety of workers while they are on the platform.


  Contact Now E-Mail Telephone WhatsApp
Product Details

Product description

Suspended Scaffolding For Cleaning is a must-have for any building maintenance or cleaning task. It provides a safe and stable platform for workers to reach high places without the need for ladders or scaffolding structures that can interfere with pedestrian traffic. The system is perfect for cleaning windows, painting, and performing exterior repairs on buildings up to 50 stories tall.

Our suspended scaffolding system is designed for maximum safety, durability, and efficiency. It features a sturdy frame made from high-quality steel that can support up to 800kg of weight. The suspension system is also designed to be easy to use and adapt to different building types and heights. The system can be quickly assembled and disassembled, reducing labor times and streamlining the cleaning and maintenance process.

The suspended scaffolding system features a range of safety features, including anti-tilt and overload protection, and is compliant with the latest safety standards. The system also includes safety ropes, harnesses, and other fall protection equipment to ensure the safety of workers while they are on the platform.

Our Suspended Scaffolding For Cleaning system is fully customizable to fit your specific needs. We offer a range of platform sizes and configurations to fit different types of buildings and workloads. We can also customize the system's color and logo to match your company's brand identity.

We are committed to providing high-quality and reliable suspended scaffolding solutions to our customers. Our products are backed by a comprehensive warranty, and we provide ongoing support and maintenance services to ensure the longevity and safety of your system.

If you are in the market for suspended scaffolding solutions for cleaning and maintenance, look no further than our high-quality and reliable system. Contact us today to learn more about our products and services.

Technical Parameters


appearancepainting/hot galvanized
fabrication materialsteel/aluminum alloy
rated load150kg500kg630kg800kg1000kg
lifting speed9-11m/min9-11m/min9-11m/min8-10m/min8-10m/min
motor power1.5kw2x1.5kw2x1.5kw2x1.8kw2x2.2kw
brake torque16kN2x16kN2x16kN2x16kN2x16kN
steel rope angle adjusting range3°-8°3°-8°3°-8°3°-8°3°-8°
distance between two steel rope≤100mm≤100mm≤100m≤100m≤100m
counter weight(optional)25kgx20pcs25kgx30pcs25kgx36pcs25kgx40pcs25kgx44pcs
diameter of steel rope8.3mm8.3mm8.3mm9.1mm10.2mm
max lifting height(m)300m300m300m300m300m
motor rotation speed1420r/min1420r/min1420r/min1420r/min1420r/min
voltage(3phases)(optional)220v/380v/415v/440v    50hz/60hz to be OEM

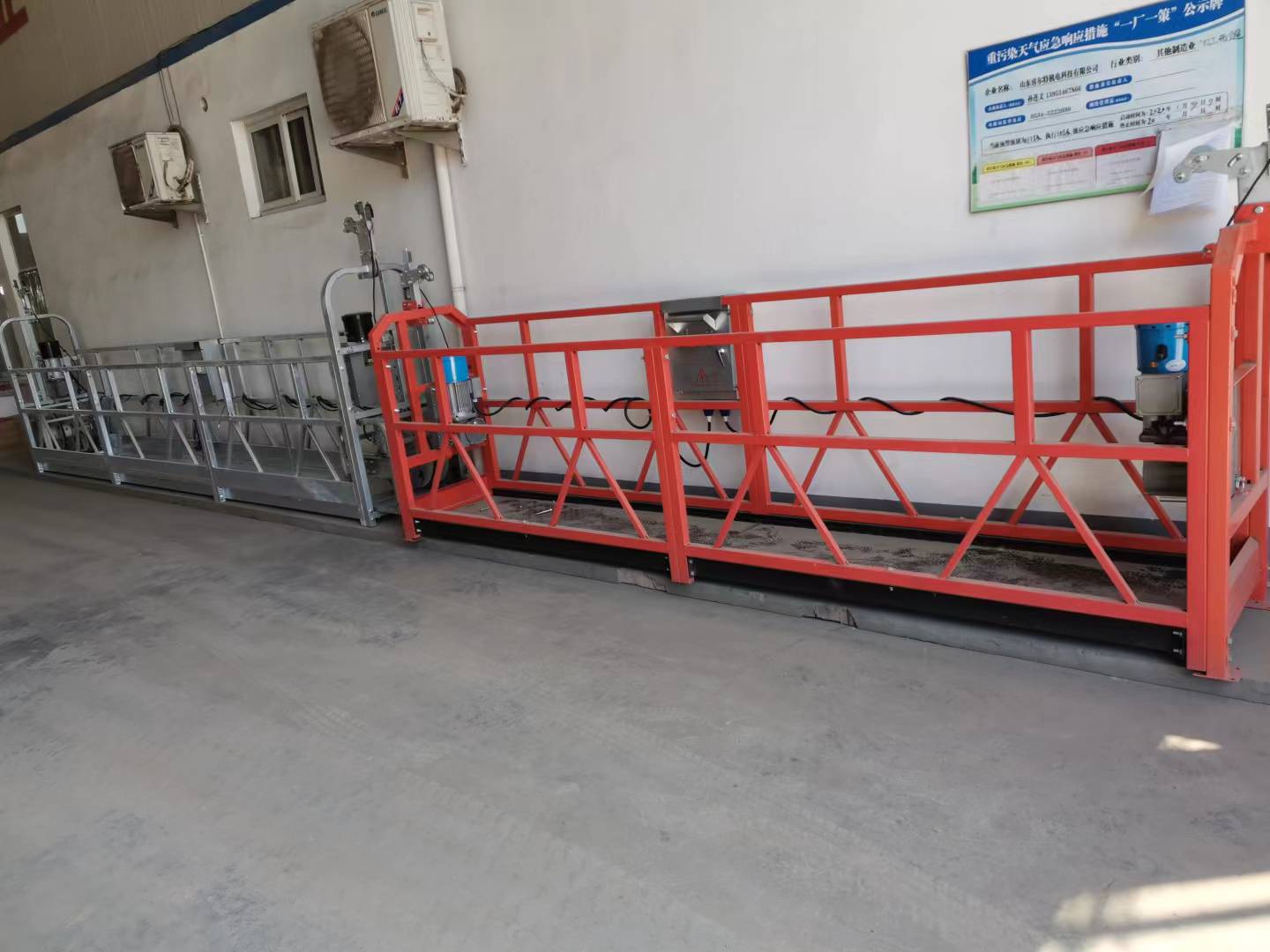

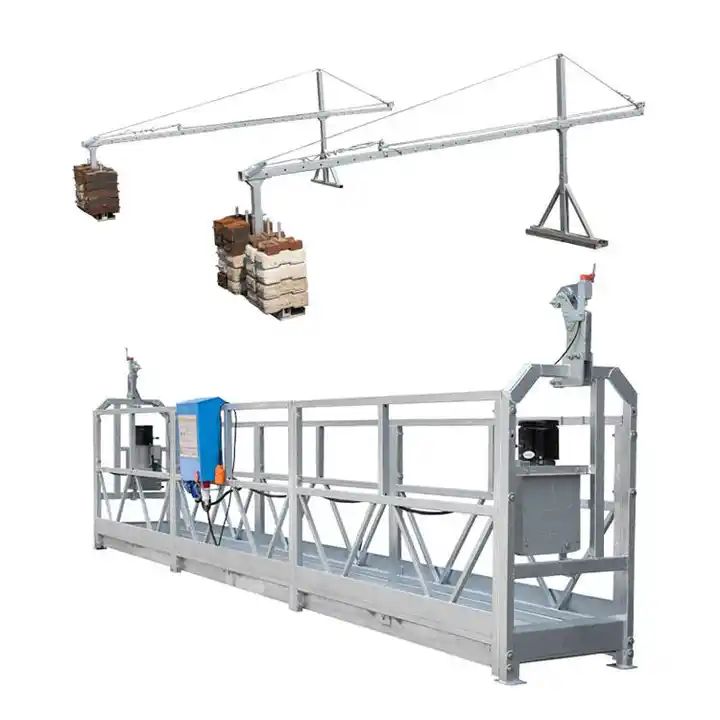

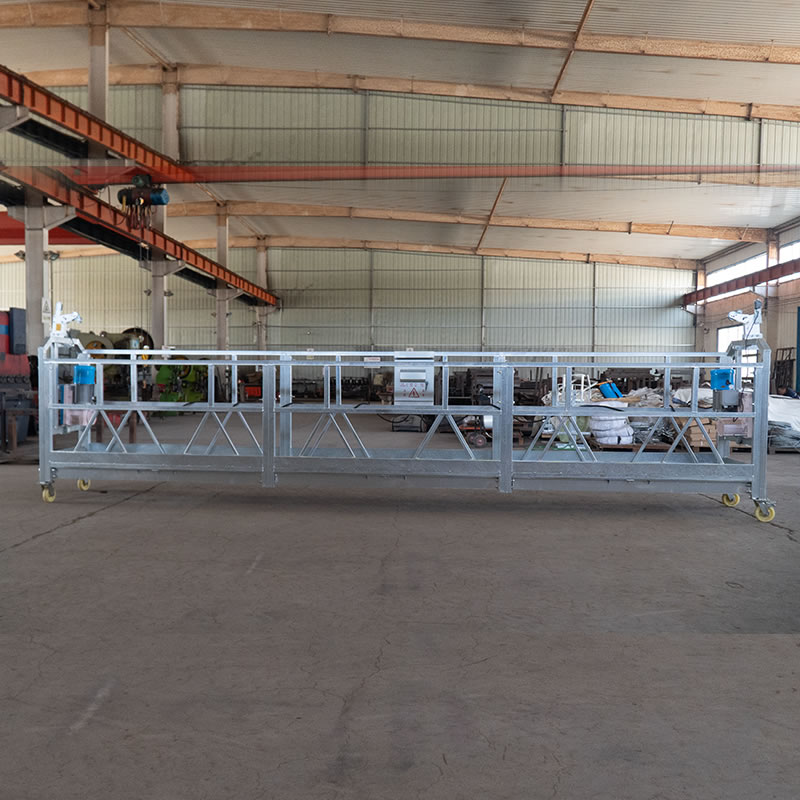

Product Pictures

Suspended Scaffolding For CleaningSuspended Scaffolding For Cleaning

Product Inspection


Suspended Scaffolding For Cleaning operation in the installation inspection is mainly reflected in the following ten aspects:

Stirrup gondola main force components (suspension platform, suspension hanging machine) whether deformation, welds have cracks;

Whether the fasteners are missing or loose at the connection of the components;

Stirrups basket hanging mechanism is installed reliably and securely, whether the counterweight meets the requirements;

Whether the wire rope is serious corrosion, whether loose strands, kinks or serious broken wire, wire rope clamping is accurate and reliable;

The electrical control system action is flexible, unlocking and locking function is normal;

The safety lock action is flexible, lock and lock function is normal;

Ascending and descending (including manual descending and sliding) operation is normal, electromagnetic brake clearance is in line with the requirements;

The operation of the counting action is normal, whether the operation of the phenomenon of obstruction, whether the abnormal noise, motor fever or smoke, burnt flavor;

Speed reducer and transmission device whether according to the requirements of filling or replacement of lubricating oil;

Stirrup cradle whether according to the requirements of the proper limit block and wire rope weight hammer.

Suspended Scaffolding For Cleaning

About Company

Based on the industry , create exclusive products

ShanDong RuiErTe Electrical Technology Co., Ltd. has developed to three series of more than ten brands, and according to the needs of users and construction needs in time to produce a variety of special specifications of products, can meet the high-rise and multi-storey building external wall construction and decoration, shipbuilding industry operations, access elevator installation, large tank, large bridge construction, etc. RuiErTe electromechanical is willing to develop with colleagues from all walks of life, Create brilliant together!


ShanDong RuiErTe Electrical Technology Co., Ltd

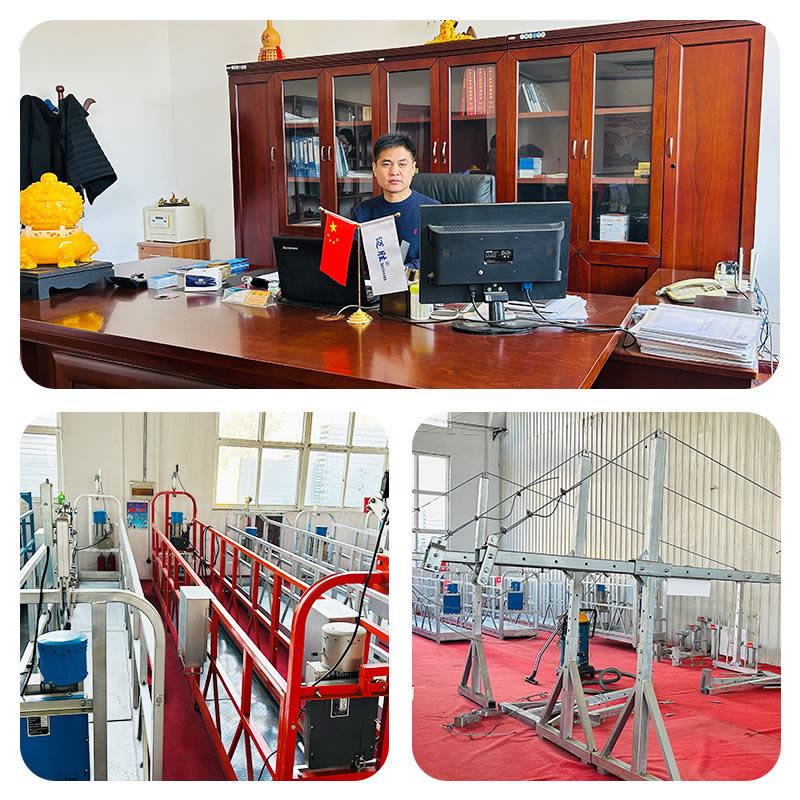

Factory environmentFactory environmentFactory environment

Qualification Honors

Qualification Honors

Payment and Transportation

Payment and Transportation

FAQ


Q1. How much is this Suspended Scaffolding For Cleaning ?
A:Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.

Q2. Are you a factory or trading company?
A:We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.

Q3. What quality certificate you own for your products?
A:Our products own EAC, CE and ISO9001 certificate.

Q4. Can you make Suspended Scaffolding For Cleaning with our brand?
A:Yes.
